Land Rover Freelander Workshop Manual (1998-2000)24 · Body
24 · Body & interior

Console - front

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Interior trim components › Console - front
BodyConsole - front · page 1 of 2

CONSOLE - FRONT

Service repair no - 76.25.01

Remove

  1. Remove rear console. See this section.
  2. Remove radio. See ELECTRICAL, Repairs.
Console - front – Remove radio. See ELECTRICAL, Repairs.

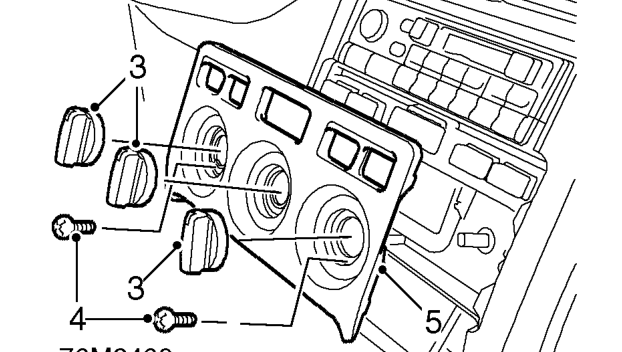

  1. Remove 3 heater control knobs.
  2. Remove 2 screws from heater control panel.
  3. Remove heater control panel.
Console - front – Remove heater control panel.

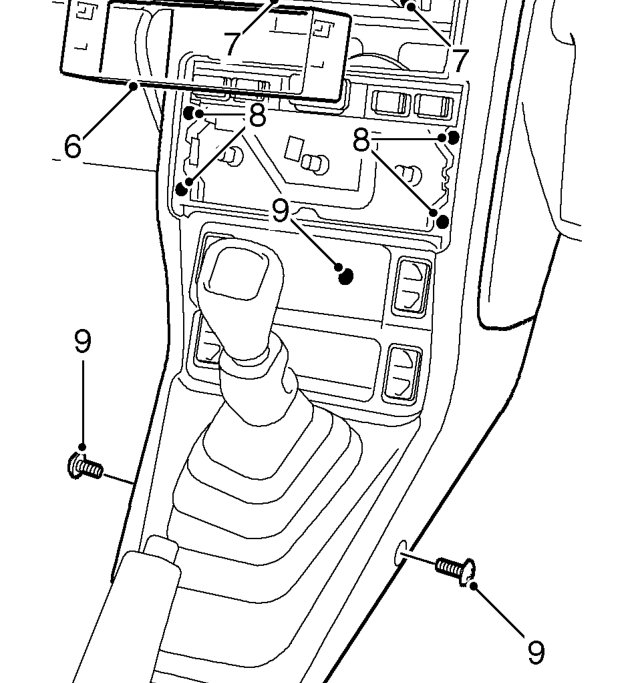

  1. Release tags and remove radio cage.
  2. Remove 2 screws from top of console.
  3. Remove 4 screws securing switch pack to console.
  4. Remove 3 screws from centre and sides of console.
Console - front – Remove 3 screws from centre and sides of console.

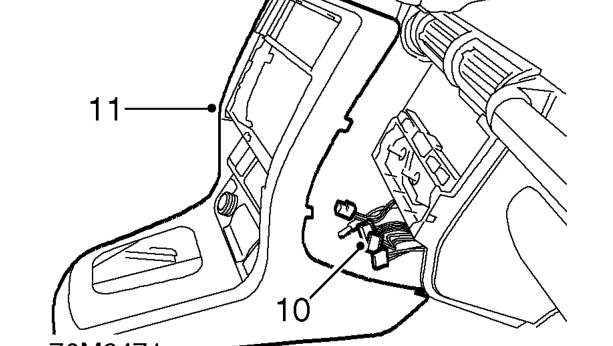

  1. Release 5 multiplugs and bulb holder from switch pack.
  2. Remove console.
