Console - front (page 2 of 2)

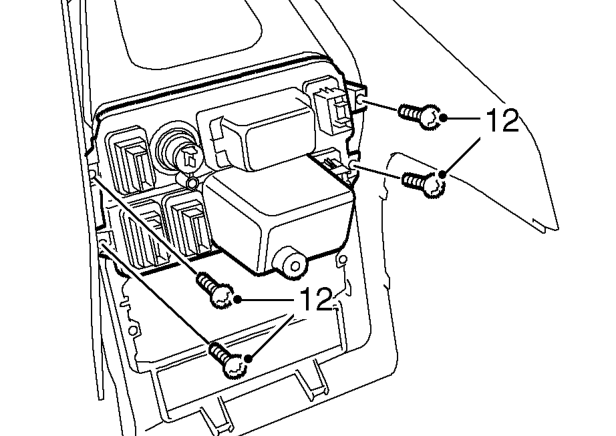

12. Remove 4 screws from switch pack assembly and remove assembly.

Refit

1. Position switch pack assembly, fit and tighten screws.
2. Position console to fascia.
3. Connect multiplugs and bulb holder to switch pack.
4. Fit and tighten screws securing centre and sides of console.
5. Fit and tighten screws securing switch pack to console.
6. Fit and tighten screws to top of console.
7. Position radio cage to console and secure with retaining tags.
8. Position heater control panel, fit and tighten screws.
9. Fit heater control knobs.
10. Fit radio. See ELECTRICAL, Repairs.
11. Fit rear console. See this section.
