All models: (page 2 of 2)
- Make
- Land Rover
- Model
- Freelander Body Repair Manual
- Year
- 1998 on
- Section
- Interior trim components
BodyAll models: · page 2 of 2

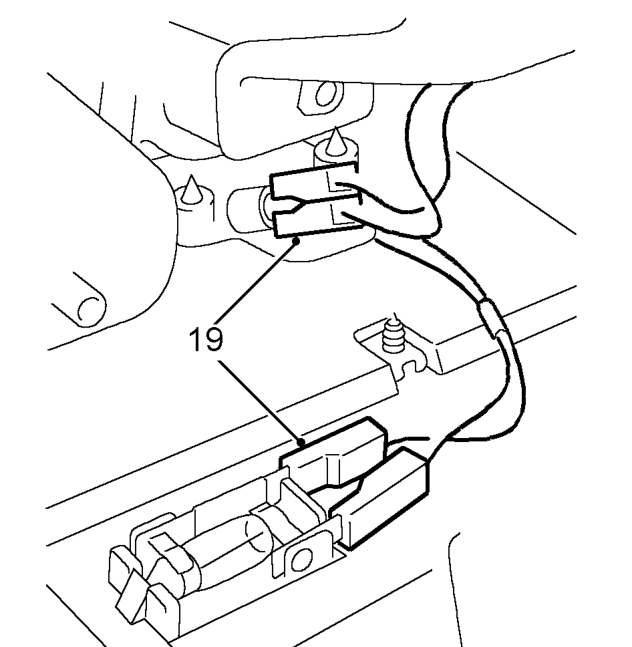

- Disconnect 4 Lucars from glove box lamp and switch.

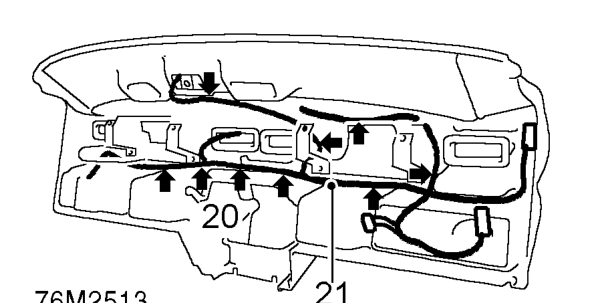

- Release 9 harness clips.
- Feed harness through fascia and remove harness.

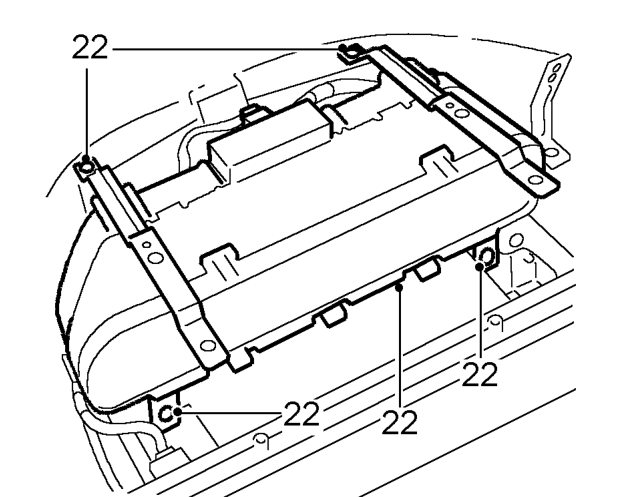

- Remove 4 screws from instrument pack and remove instrument pack.

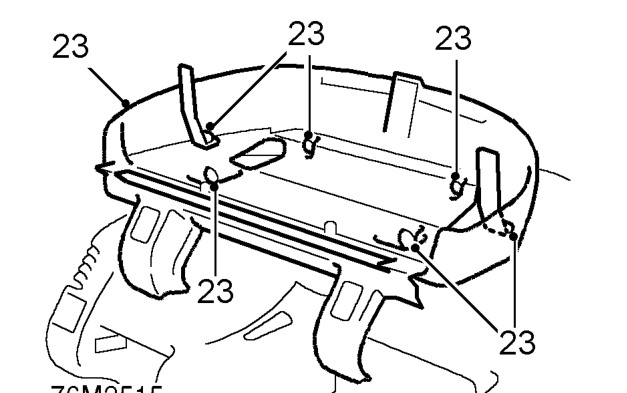

- Remove 6 screws from instrument pack lower cover and remove cover.
