EVAPORATIVE EMISSION (EVAP) CANISTER - ’K’ SERIES

Service repair no - 17.15.13

Remove

  1. Disconnect battery earth lead.

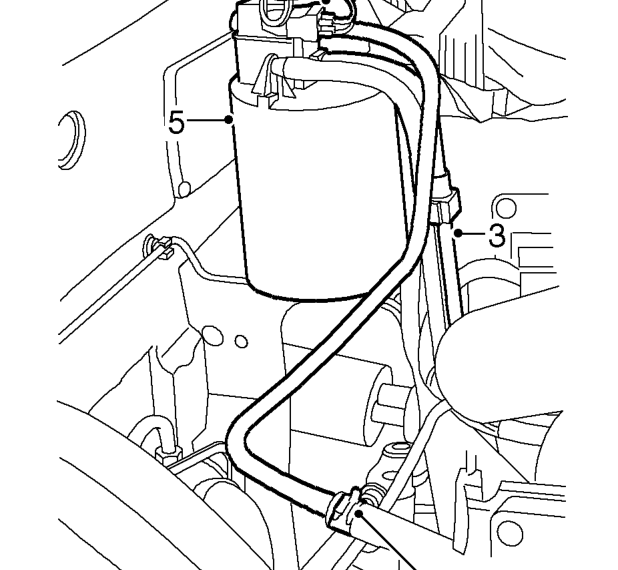

Evaporative emission (evap) canister - ’k’ series – Disconnect battery earth lead.
  1. Release clip and disconnect hose from throttle housing.
  2. Disconnect hose from fuel tank vent pipe.
  3. Disconnect multiplug from EVAP canister purge valve.
  4. Release EVAP canister from mounting bracket.
  5. Remove EVAP canister. Do not carry out further dismantling if component is removed for access only.

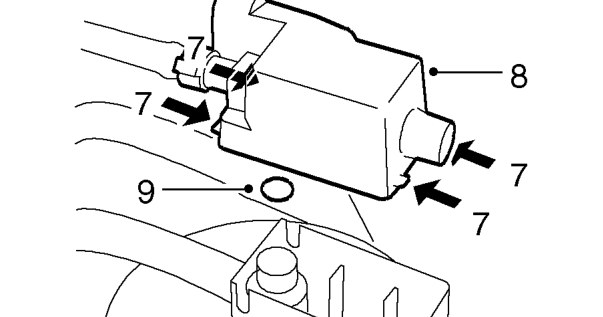

Evaporative emission (evap) canister - ’k’ series – Remove EVAP canister. Do not carry out further dismantling if component is removed for acc
  1. Release 4 clips securing purge valve to EVAP canister.
  2. Remove EVAP canister purge valve.
  3. Remove and discard ’O’ ring from EVAP canister purge valve.

Refit

  1. Clean EVAP canister purge valve and valve seat on EVAP canister.
  2. Fit NEW ’O’ ring to EVAP canister purge valve.
  3. Position purge valve and secure to EVAP canister.
  4. Fit EVAP canister to mounting bracket.
  5. Connect hose to fuel tank vent pipe.
  6. Connect hose to throttle housing and secure with clip.
  7. Connect multiplug to EVAP canister purge valve.
  8. Connect battery earth lead.
