PURGE CONTROL VALVE - EVAPORATIVE EMISSION CANISTER - ’K’ SERIES

Service repair no - 17.15.39

Remove

  1. Disconnect battery earth lead.

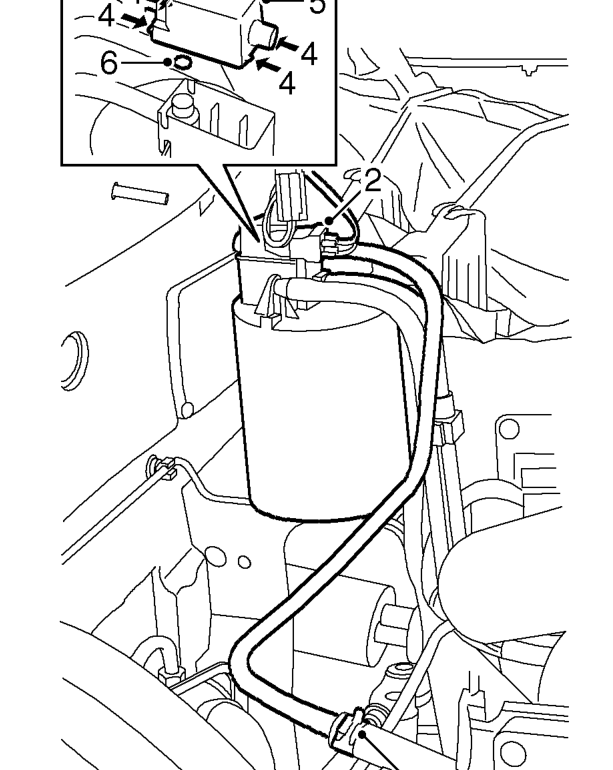

Purge control valve - evaporative emission canister - ’k’ series – Disconnect battery earth lead.
  1. Disconnect multiplug from EVAP canister purge valve
  2. Release clip and disconnect hose from throttle housing.
  3. Release 4 clips securing purge valve to EVAP canister.
  4. Remove EVAP canister purge valve.
  5. Remove and discard ’O’ ring from EVAP canister purge valve.

Refit

  1. Clean EVAP canister purge valve and valve seat on EVAP canister.
  2. Fit NEW ’O’ ring to EVAP canister purge valve.
  3. Position purge valve and secure to EVAP canister.
  4. Connect hose to throttle housing and secure with clip.
  5. Connect multiplug to EVAP canister purge valve.
  6. Connect battery earth lead.
