Engine - L SeriesEngine oil pressure check

ENGINE OIL PRESSURE CHECK

Service repair no - 12.90.09/01

Remove

  1. Remove oil pressure switch. See Repairs.

Check

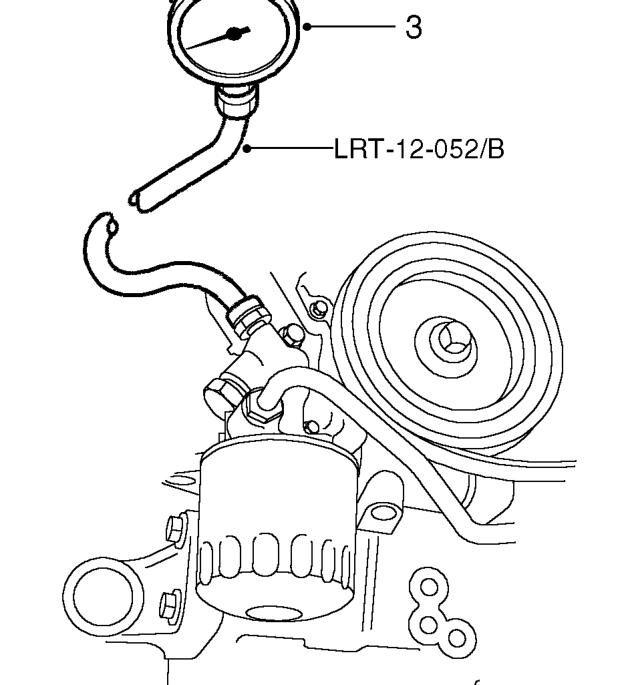

Engine oil pressure check – Remove oil pressure switch. See Repairs.
  1. Top up engine oil if necessary. See MAINTENANCE.
  2. Use pressure check kit LRT-12-052B fit adaptor and gauge to oil pump.
  3. Run engine at idle speed and check for correct oil pressure. See INFORMATION, General data.
  4. Switch off ignition.
  5. Remove pressure gauge and adaptor.
  6. Clean oil spillage.

Refit

  1. Fit oil pressure switch. See Repairs.
