Diesel models

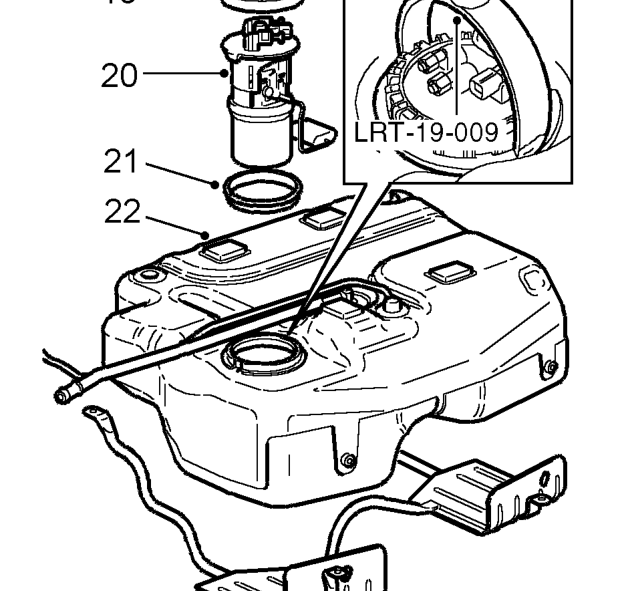

19. Use LRT-19-009 to remove retaining ring from fuel gauge unit.
20. Remove fuel gauge unit.
21. Remove fuel gauge unit seal.
22. Remove fuel tank from cradle.

Refit

1. Fit fuel tank to cradle.
2. Clean mating faces of fuel gauge unit and fuel tank.
3. Fit seal and gauge unit, secure retaining ring with LRT -19-009 to 45Nm.
4. With assistance, fit fuel tank and tighten bolts to 45 Nm.

NOTE: Pass breather and vent hoses through body while fitting tank.

5. Raise subframe and tighten bolts to 190 Nm.
6. Connect breather hose\s to filler neck.
7. Connect vent hose to filler neck and secure with clip.
8. Position rear wheel arch liner and secure with scrivets.
9. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
10. Fit propeller shaft. See DRIVE SHAFTS, Repairs.
11. Fit intermediate exhaust pipe. See MANIFOLD & EXHAUST SYSTEMS, Repairs.

Diesel models

12. Connect fuel feed and return hose to fuel gauge tank unit.

Petrol models

13. Connect fuel feed hose to tank unit.

All models

14. Connect multiplug to tank unit.
15. Fit fuel gauge unit cover and secure with screws.
16. Reposition carpet and lower the seat.
17. Refill fuel tank.
