Heating & ventilationFootwells

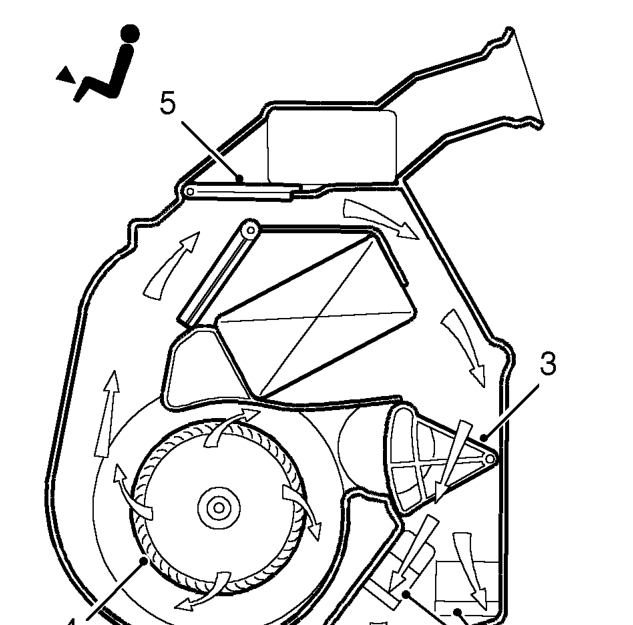

Footwells

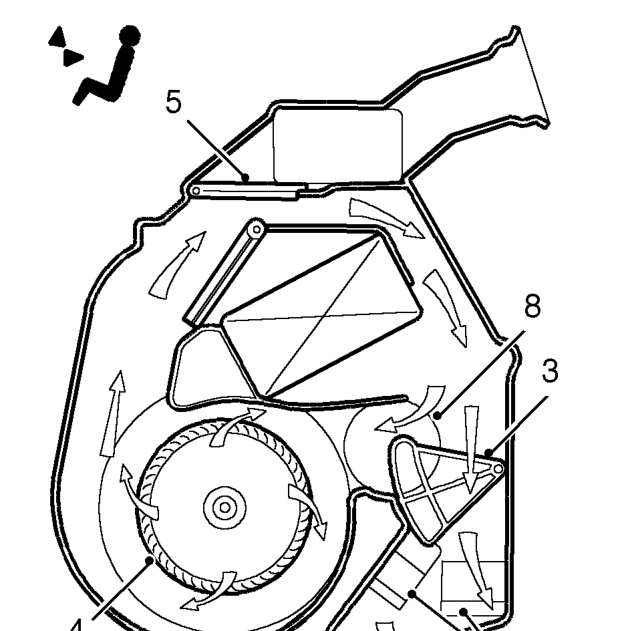

Footwells and windscreen/side windows demist

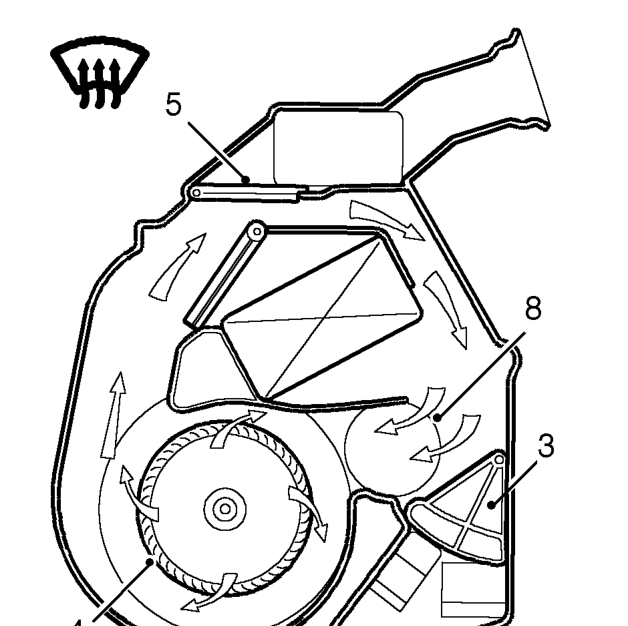

Windscreen/Side windows demist
Key to distribution control figures
- Outer face level air outlet
- Centre face level air outlet
- Distribution main flap
- Blower
- Distribution fresh air flap
- Front footwell air outlets
- Rear footwells air outlet
- Windscreen and side window air outlet
