Land Rover Freelander Workshop Manual (1998-2000)18 · Rear axle and final drive
18 · Transmission

Oil seal - differential

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › Oil seal - differential
Rear axle and final driveOil seal - differential · page 1 of 2

OIL SEAL - DIFFERENTIAL

Service repair no - 51.20.36

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).

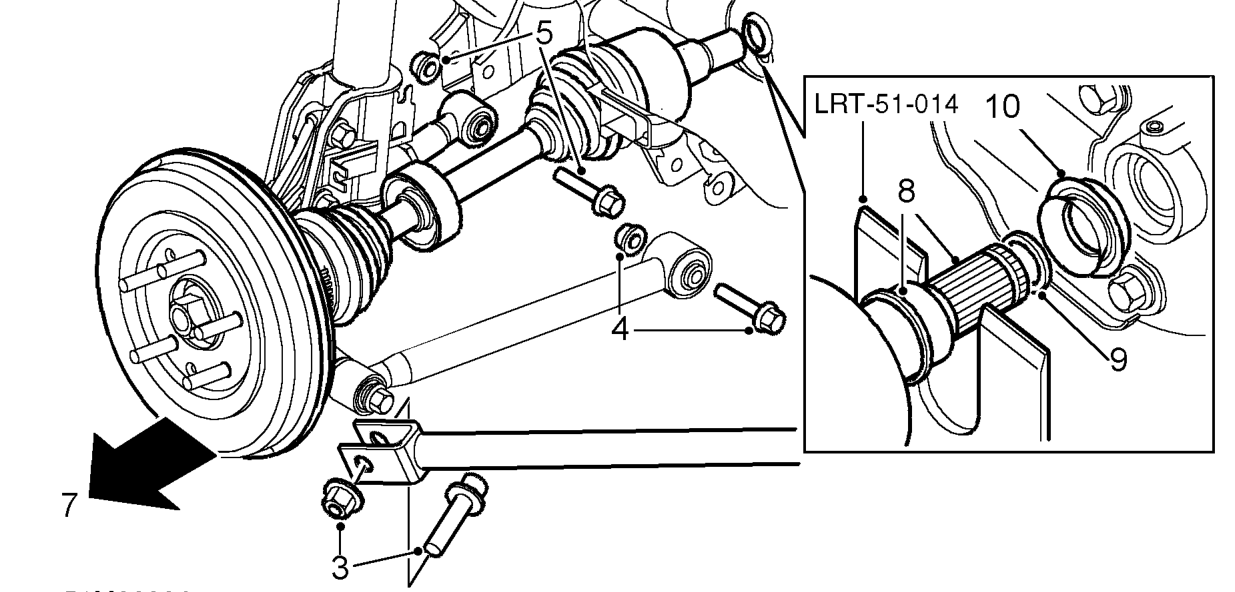

Oil seal - differential – Remove road wheel(s).
  1. Remove nut and bolt securing trailing link to rear hub.
  2. Remove nut and bolt securing fixed transverse link to sub frame.
  3. Remove nut and bolt securing adjustable transverse link to sub frame.
  4. Position drain tin to catch spillage.
  5. With assistance pull hub assembly outwards.
  6. Taking care not to damage oil seal ’Flinger’, release drive shaft inner joint from differential using LRT-51-014 and position aside.
  7. Remove and discard drive shaft circlip.
  8. Remove differential oil seal.
