Freelander Service Procedures
BRAKES
REPAIRS

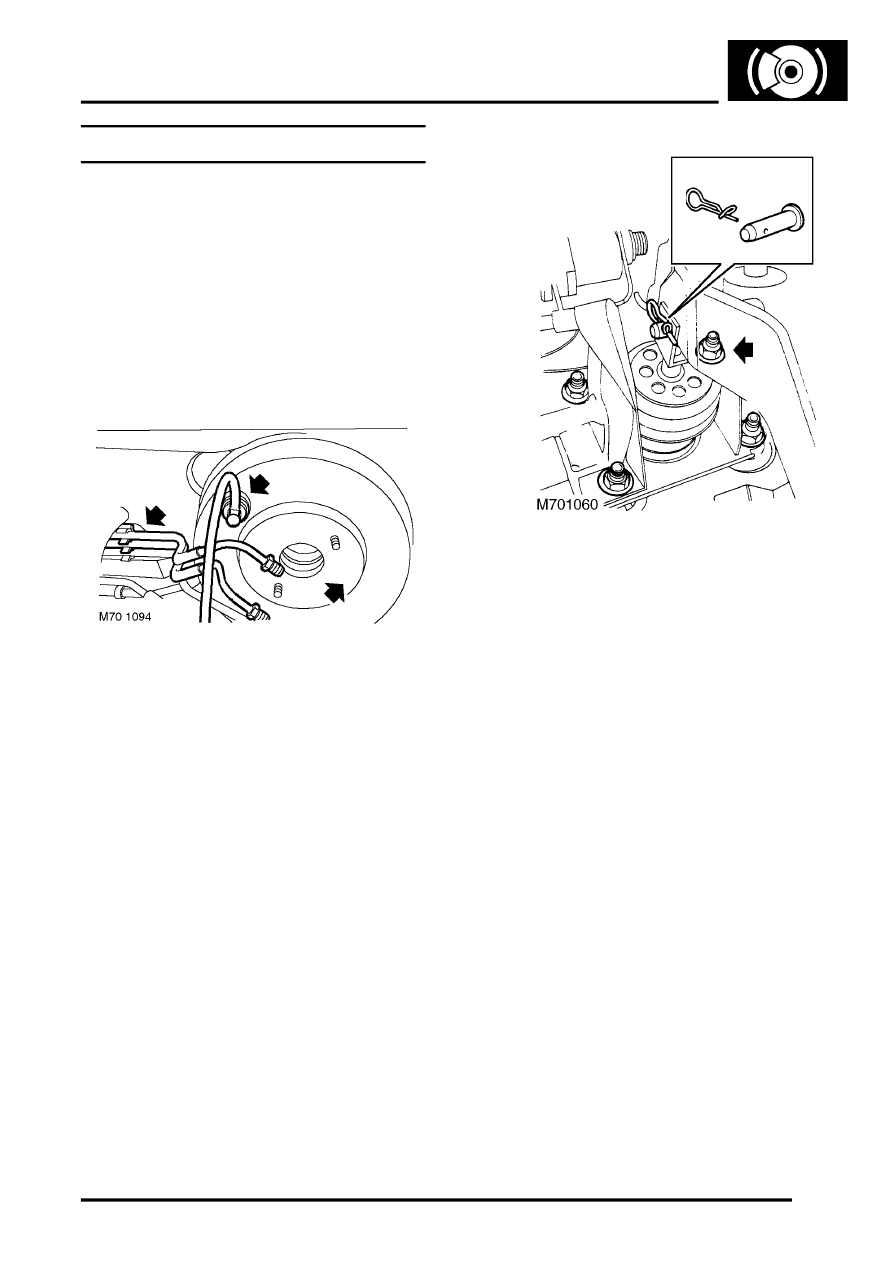

70-19
Servo assembly - RHD
$% 70.50.01
Remove
1. KV6 models: Remove engine acoustic cover.
2. Td4 models: Remove air cleaner element
FUEL DELIVERY SYSTEM - DIESEL,
REPAIRS, Element - air cleaner.
3. Remove brake master cylinder.
4. Release and disconnect vacuum hose from
servo.
5. Remove and discard vacuum hose seal.
6. Release brake pipes from clips on bulkhead.
7. Remove clip and clevis pin securing brake
servo push rod to brake pedal.
8. Remove 4 nuts securing servo to body and
remove servo.
9. Remove and discard gasket.
Refit
1. Fit new gasket to servo.
2. Position servo to body, fit nuts and tighten to 22
Nm (16 lbf.ft).
3. Align push rod to brake pedal, fit clevis pin and
secure with new spring clip.
4. Fit new vacuum hose seal.
5. Connect vacuum hose to servo.
6. Fit brake master cylinder.
7. Secure brake pipes in retaining clips.
8. Td4 models: Fit air cleaner element.
FUEL DELIVERY SYSTEM - DIESEL,
REPAIRS, Element - air cleaner.
9. KV6 models: Fit engine acoustic cover.
