Freelander Service Procedures
BRAKES
70-20
REPAIRS
Vacuum pump - Td4 - manual
$% 70.50.19
Remove
1. Disconnect battery earth lead.
2. Remove air cleaner element.
FUEL DELIVERY SYSTEM - DIESEL,
REPAIRS, Element - air cleaner.
3. Move injector harness clear of vacuum pump.

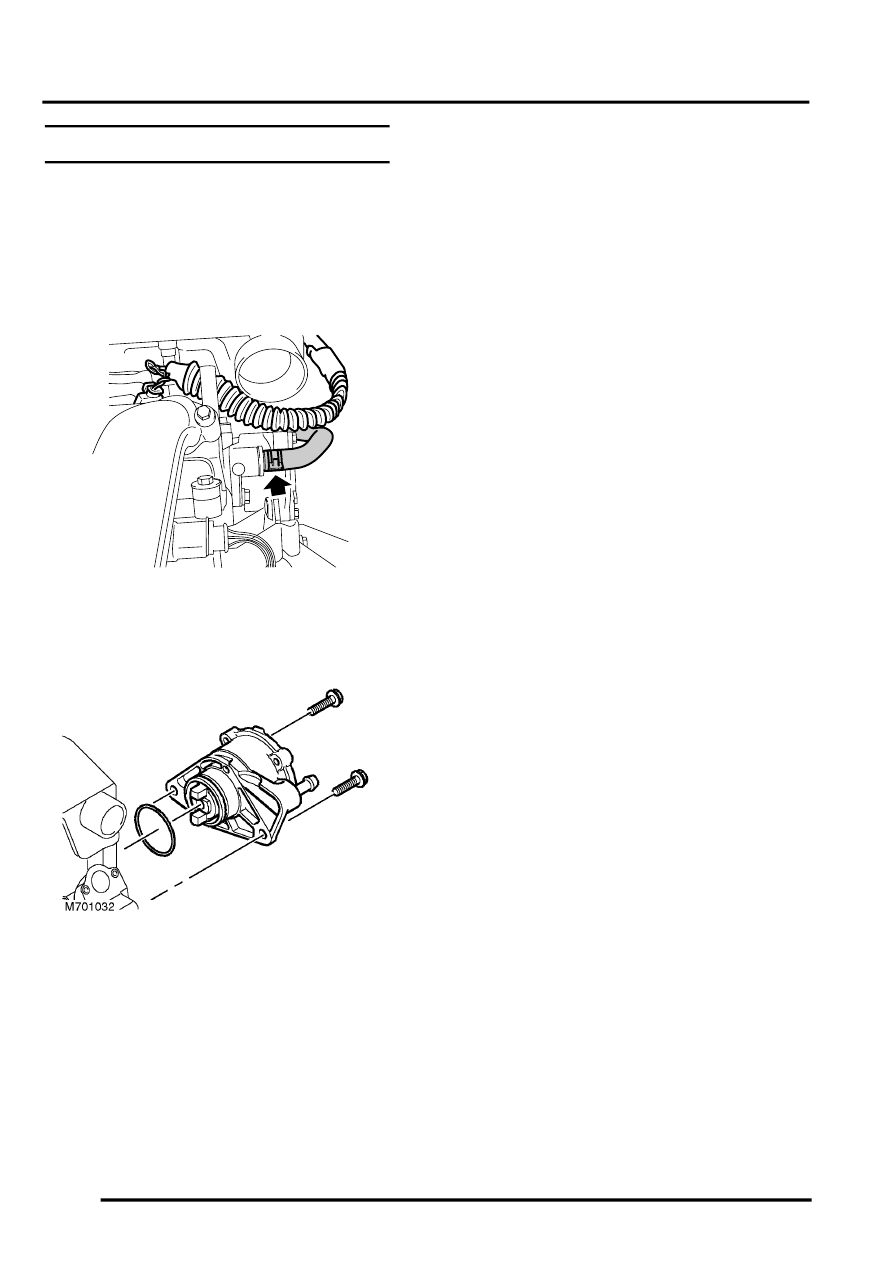

4. Release clip and disconnect hose from vacuum
pump.
5. Remove and discard 2 bolts securing vacuum
pump.
6. Remove vacuum pump and discard 'O' ring.
Refit
1. Clean vacuum pump and mating face.
2. Fit new 'O' ring to vacuum pump.
3. Rotate vacuum pump drive to align with
camshaft, fit vacuum pump and tighten new
bolts to 22 Nm (16 lbf.ft).
4. Connect hose to vacuum pump and secure with
clip.
5. Reposition injector harness.
6. Fit air cleaner element.
FUEL DELIVERY SYSTEM - DIESEL,
REPAIRS, Element - air cleaner.
7. Connect battery earth lead.
M70 1031
