Freelander Service Procedures
ENGINE - K SERIES KV6
REPAIRS 12-3-49
Torque converter drive plate
$% 12.53.13
Remove
1. Remove automatic gearbox.

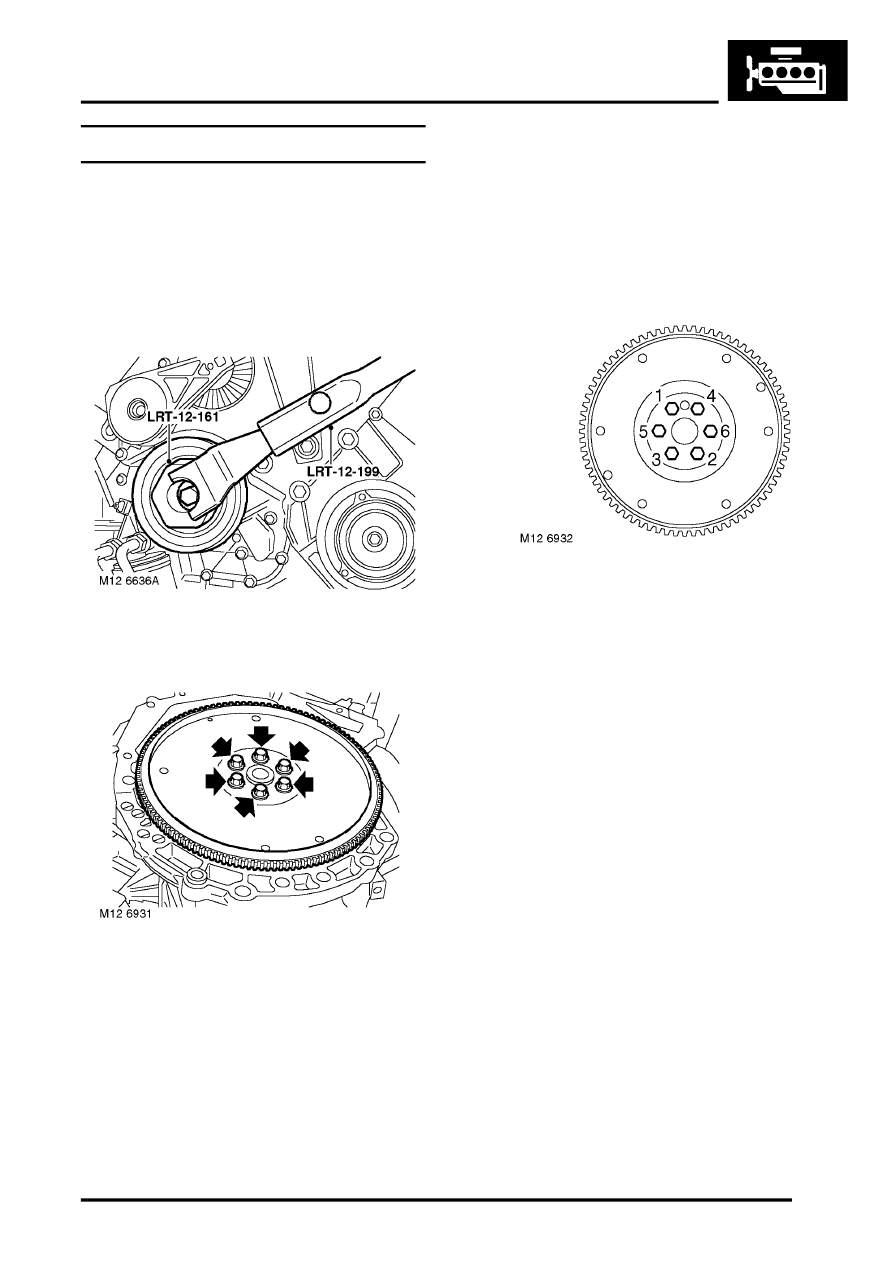

2. Assemble LRT-12-161 to LRT-12-199 and
secure with clamp bolt.
3. Position LRT-12-161 and LRT-12-199 to
crankshaft pulley to restrain crankshaft.
4. Remove and discard 6 Patchlok bolts securing
drive plate to crankshaft.
5. Remove drive plate from crankshaft.
Refit
1. Clean bolt holes in crankshaft using an old
drive plate bolt with two saw cuts at an angle of
45
°
to the bolt shank.
2. Clean drive plate and mating face of
crankshaft.
3. Position LRT-12-161 and LRT-12-199 to
crankshaft pulley to restrain crankshaft.
4. Position drive plate to crankshaft.
5. Fit new Patchlok bolts securing drive plate to
crankshaft and tighten in sequence shown to:
l
Stage 1 - 25 Nm (18 lbf.ft)
l
Stage 2 - 100 Nm (74 lbf.ft)
6. Remove LRT-12-161 and LRT-12-199 from
crankshaft pulley.
7. Fit automatic gearbox.
