Freelander Service Procedures
REAR SUSPENSION
REPAIRS
64-3

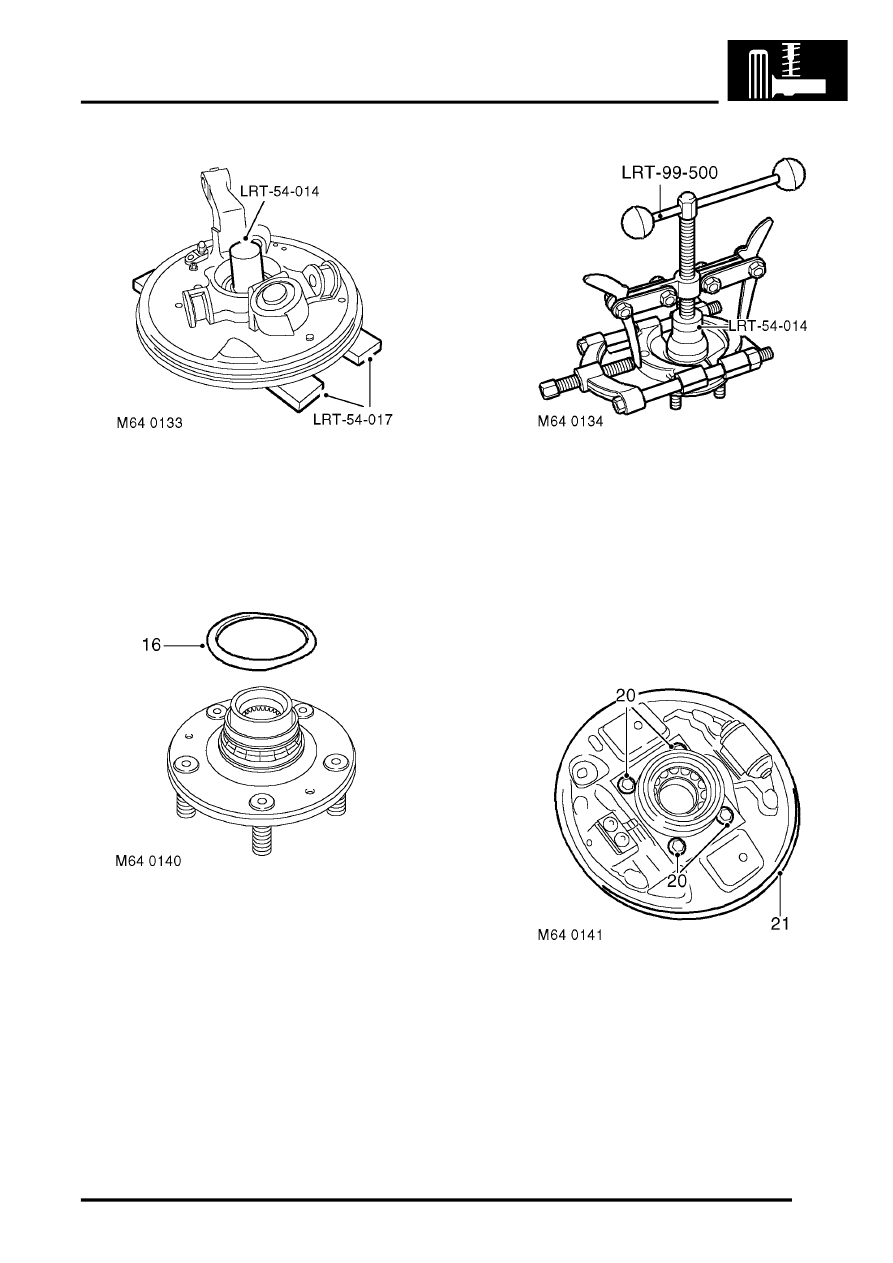

14. Position hub assembly to press, support on
tools LRT-54-017 and press out drive flange
using tool LRT-54-014.
NOTE: Outer bearing track will remain on drive
flange.
15. Remove bearing sealing plate from inner track.
16. Position drive flange in a vice.
17. Clamp both halves of a suitable bearing
separator around inner track ensuring that
inner lip fits in groove on inner track.
From 2002MY the groove in the inner track was
deleted. To remove the inner track, clamp the
separator around the inner track bearing
surface.
18. Using tool LRT-99-500 and thrust pad LRT-54-
014 withdraw inner track from drive flange.
19. Fit hub to vice and remove 4 bolts securing
backplate to hub.
20. Remove backplate.
