Freelander Service Procedures
SEATS
REPAIRS
76-5-5

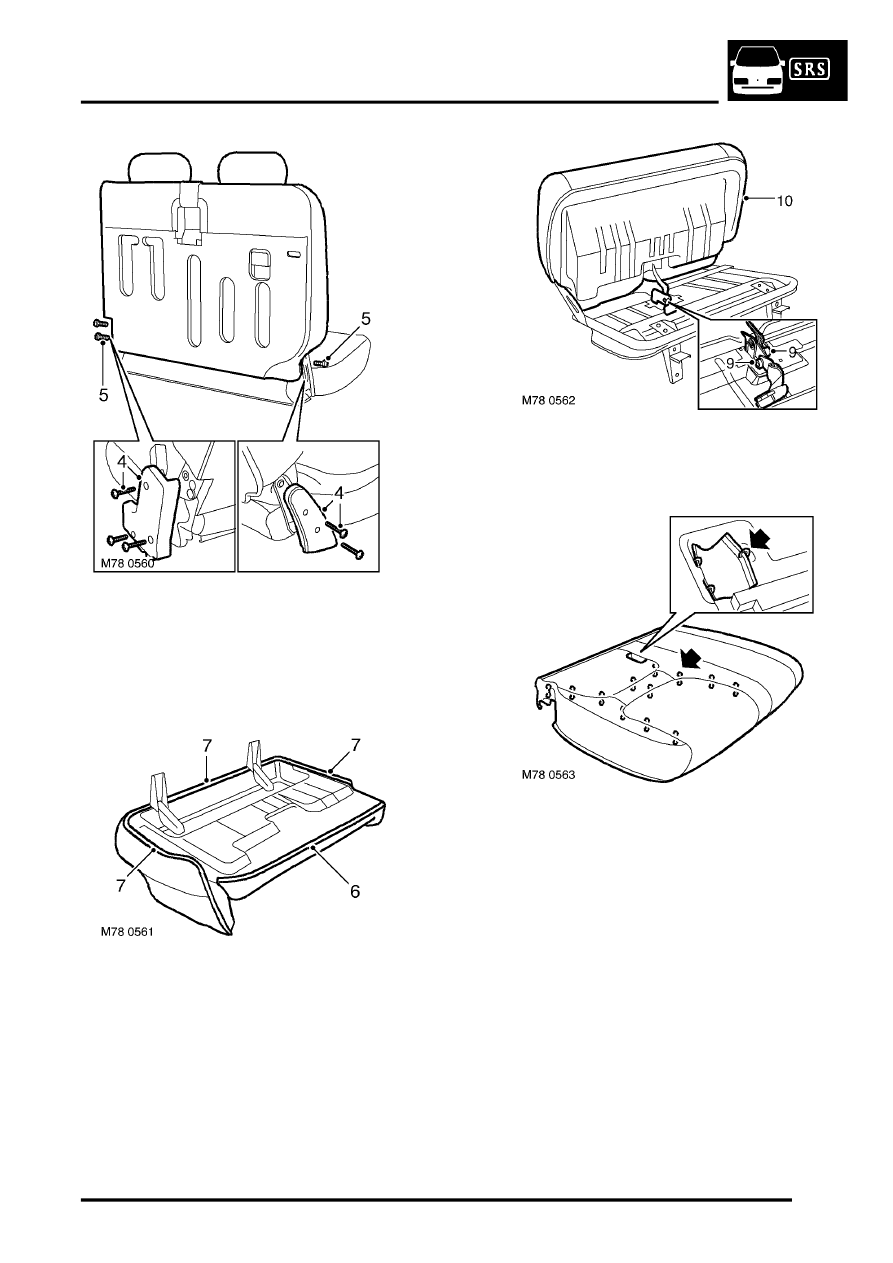

4. Remove 5 screws and remove both end
covers.
5. Remove 3 Torx bolts and remove squab from
cushion.
6. Release rear of cushion cover from frame.
7. Release sides and front of cushion cover from
frame.
8. Release cover and pad from frame.
9. Remove 2 Torx bolts from seat belt and buckle
and remove seat belt and buckle from frame.
10. Remove cushion cover and pad.

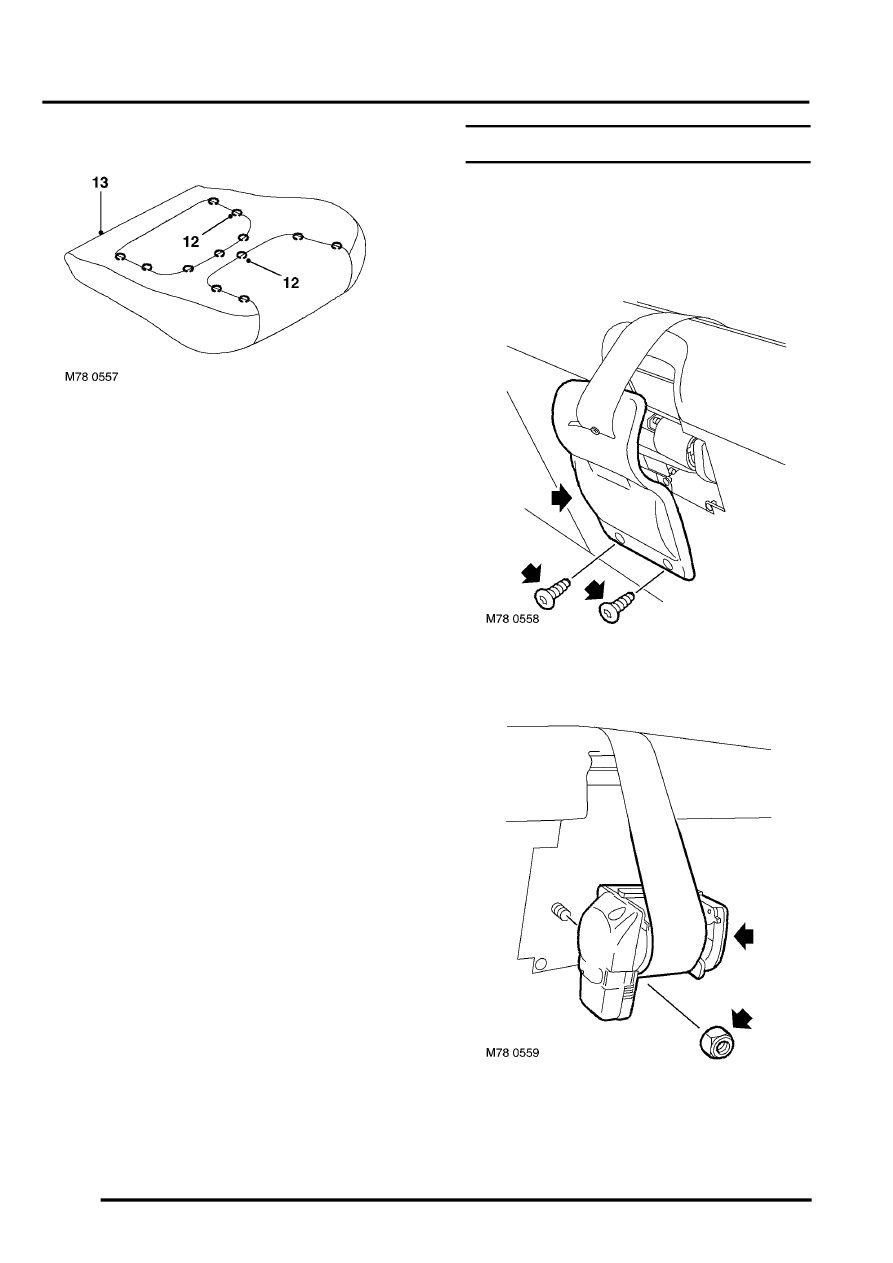

11. Remove and discard 17 hog rings and remove
cover from pad.
Refit
1. Position cushion cover to cushion pad and
secure to frame with hog rings in position noted
during removal.
2. Position seat belt and buckle to frame and
tighten to 32 Nm (24 lbf.ft).
3. Fit squab cover and pad to frame.
4. Fit front and sides of cushion cover to frame.
5. Fit rear of cushion cover to frame.
6. Fit cushion to squab and tighten Torx bolts to
28 Nm (21 lbf.ft).
7. Fit end covers and tighten screws.
8. Position seat belt reel in seat squab and tighten
nut to 32 Nm (24 lbf.ft).
9. Fit seat belt reel cover and tighten screws.
10. Fit rear seat.
