SRS Harnesses and Connectors

SRS Harnesses and Connectors

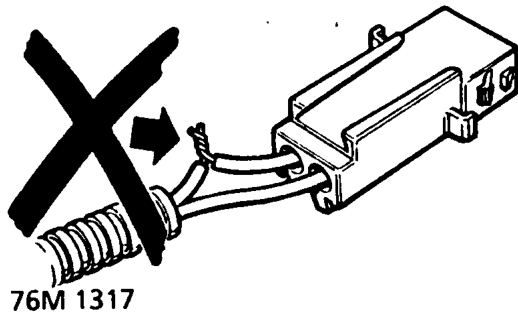

CAUTION: Always observe the following precautions with regards to SRS systems: Never attempt to modify, splice or repair

• SRS wiring. • Never install electronic equipment (such as a mobile telephone, two way radio or in-car entertainment system) in such a way that it could generate electrical interference in the airbag harness. Seek specialist advice when installing such equipment.

NOTE: SRS wiring can be identified by a special yellow outer protective covering (black with yellow stripe protective coverings are sometimes used).

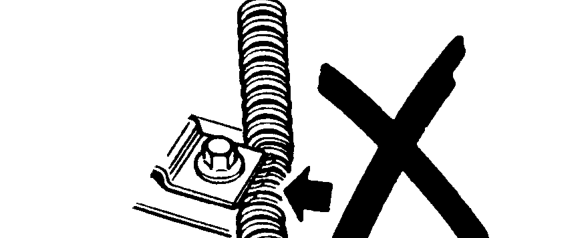

CAUTION: Always ensure SRS harnesses are routed correctly. Be careful to avoid trapping or pinching the SRS harness. Route the harness to avoid possible points of chafing. • Always use specified earth fixings tightened to the correct torque. Poor earthing can cause intermittent problems that are difficult to diagnose.

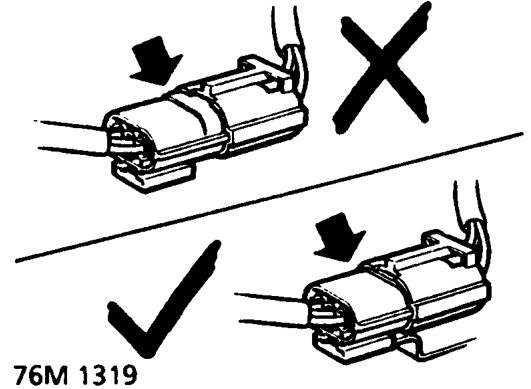

CAUTION: Ensure all airbag harness connectors are mated correctly and securely fastened. Do not leave the connectors hanging loose. • Do not allow SRS components to hang from their harnesses.
