Restraint systemsRear seat belts
Rear seat belts
Three door models
The inertia reel of each rear seat belt is attached to a bracket on top of the related rear suspension turret, behind the loadspace rear quarter trim. The webbing runs from the inertia reel, through a loop on the D post, to an anchor point in the rear wheel arch.
The buckle for each belt is directly attached to the inboard side of the related rear seat frame.

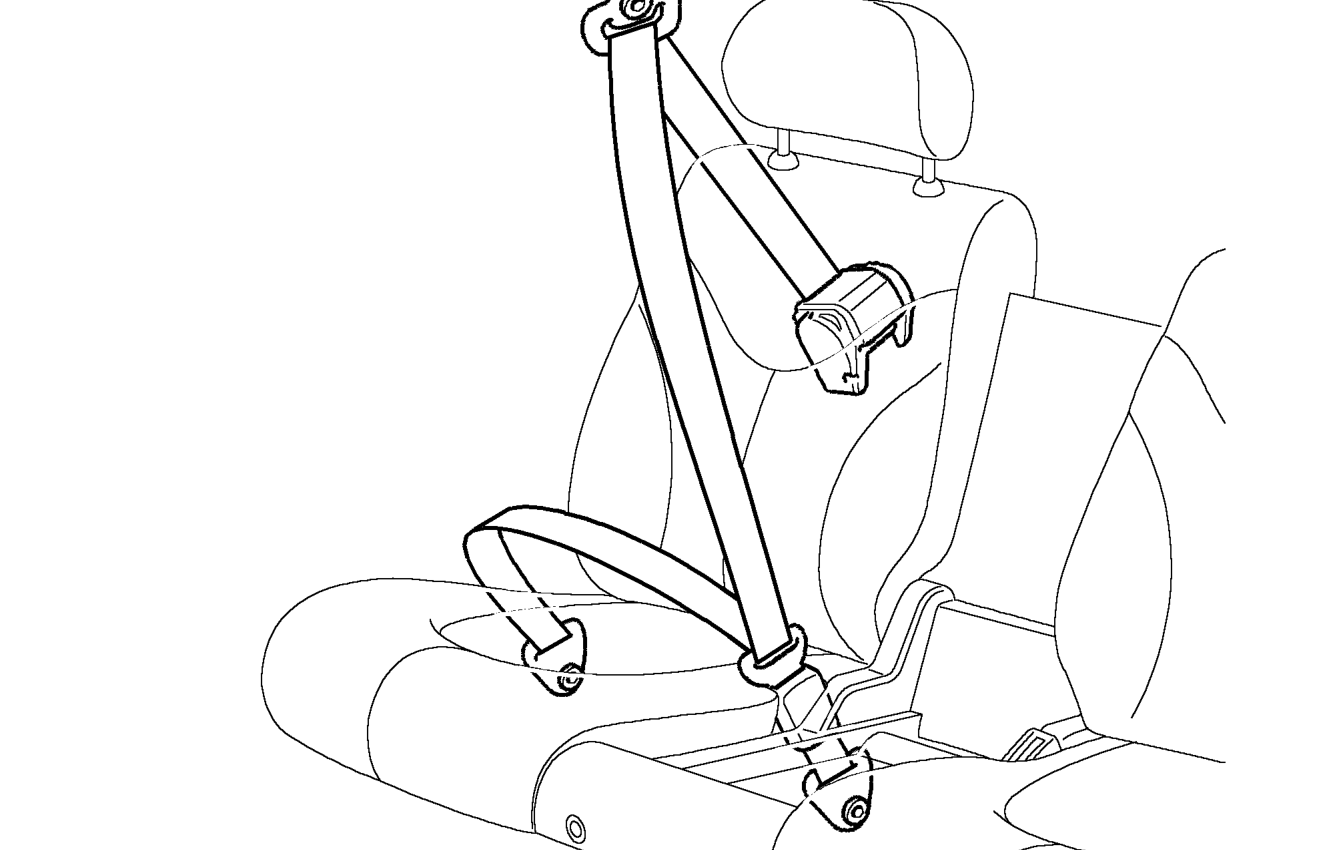

Rear seat belt components - three door models
