Restraint systemsSystem description

System description

The supplementary restraint system (SRS) provides additional protection for front seat occupants during a frontal collision above a preset severity.

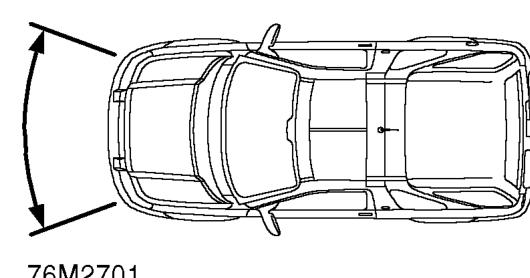

Impact zone for SRS activation (approximate)

Impact zone for srs activation (approximate) – The supplementary restraint system (SRS) provides additional protection for front seat occ

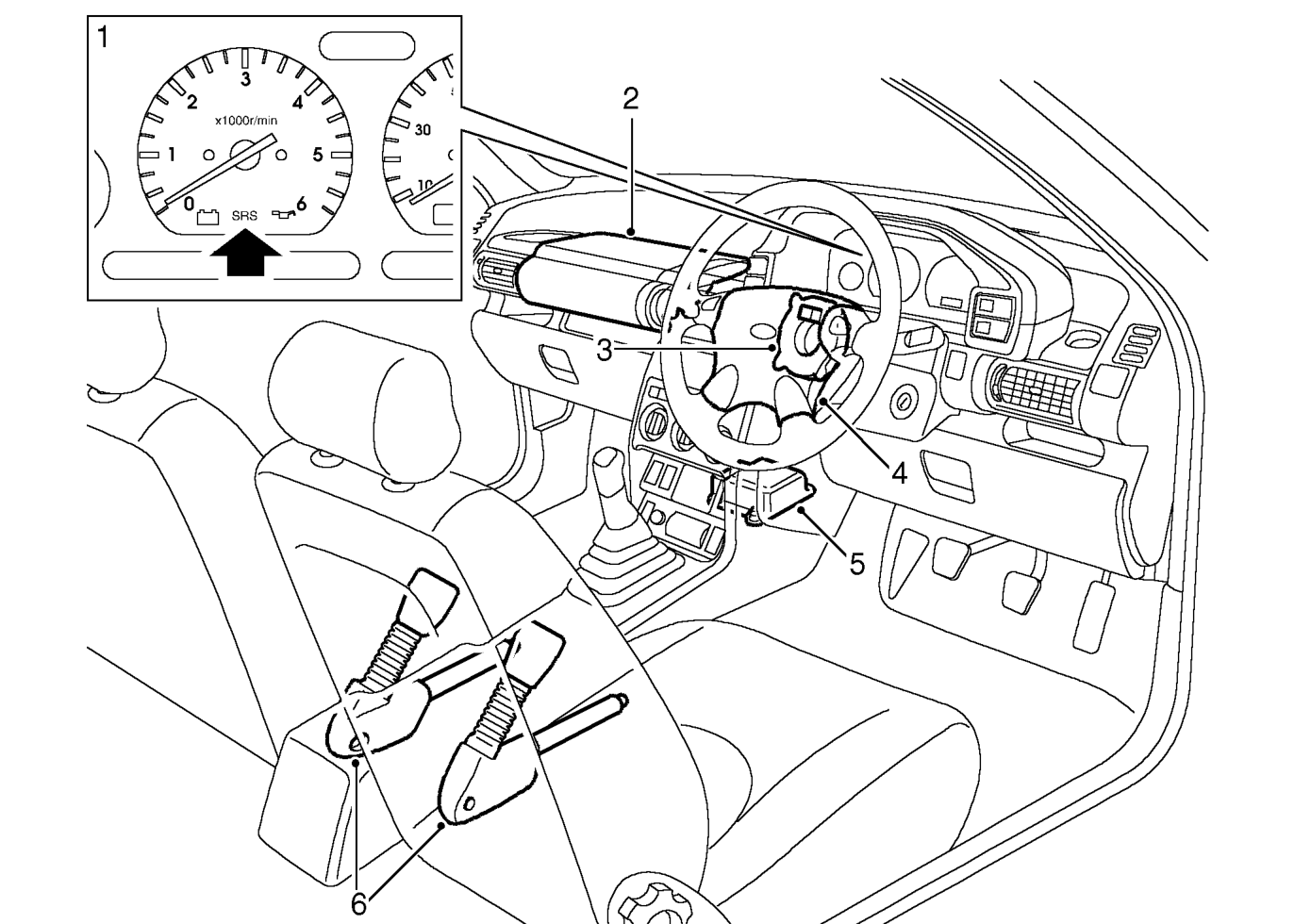

SRS component location

Srs component location – The supplementary restraint system (SRS) provides additional protection for front seat occ
  1. SRS warning lamp
  2. Passenger’s airbag module (optional)
  3. Rotary coupler
  4. Driver’s airbag module
  5. Airbag ECU
  6. Seat belt pretensioners
