Colour: NATURAL Gender: Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 2001 on
- Section
- C0096 Switch-Hazard warning › Colour: NATURAL Gender: Female
ConnectorsColour: NATURAL Gender: Female
| Cav 1 | Col G | Cct ALL |
| 2 | NO | ALL |
| 3 | LGK | ALL |
| 4 | RO | ALL |
| 5 | B | ALL |
| 6 | LGN | ALL |
| 7 | GR | ALL |
| 8 | SY | ALL |
| 9 | GW | ALL |

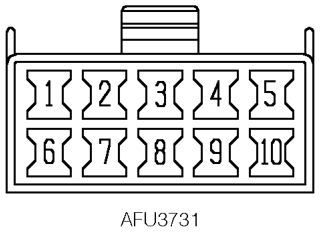

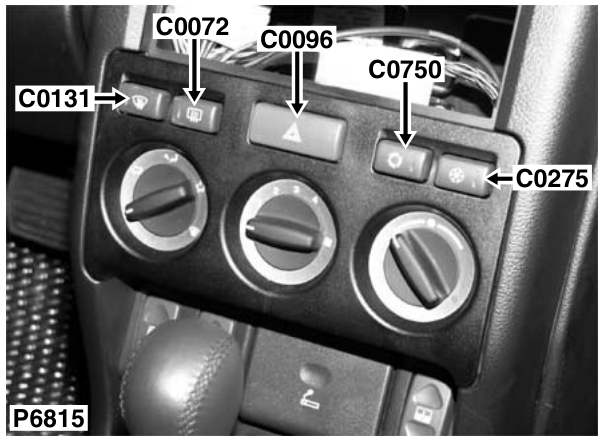

Description: Switch-Hazard warning Location: Behind centre console
Colour: NATURAL Gender: Female
