Description: Head Unit-Audio System
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 2001 on
- Section
- C0098 Head Unit-Audio System › Description: Head Unit-Audio System
ConnectorsDescription: Head Unit-Audio System
| Cav 1 | Col YK | Cct 9 |
| 2 | OK | 9 |
| 3 | SK | 9 |
| 5 | LGW | 9 |
| 6 | UK | 9 |
| 7 | WRY | 13 |
| 8 | YB | 9 |
| 9 | P | ALL |
| 10 | BW | 9 |
| 11 | OB | 9 |
| 12 | SB | 9 |
| 13 | RO | 9 |
| 14 | UB | 9 |
| 15 | B | ALL |
| 17 | BR | 9 |
Description: Head Unit-Audio System

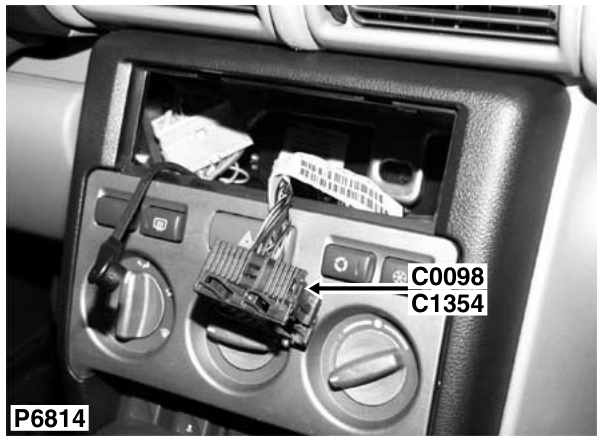

Location: Behind centre console
Colour: BLACK Gender: Female
