Description: Unit-Fuel Tank
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 2001 on
- Section
- C0114 Unit-Fuel Tank › Description: Unit-Fuel Tank
ConnectorsDescription: Unit-Fuel Tank
| Cav 1 | Col B | Cct ALL |
| 2 | GB | ALL |
| 3 | B | ALL |
| 4 | WP | ALL |

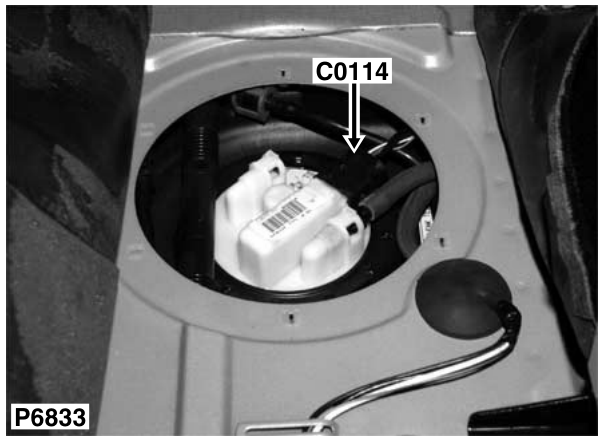

Description: Unit-Fuel Tank
Location: Beneath rear seat
Colour: BLACK Gender: Female
