Description: Instrument Pack
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 2001 on
- Section
- C0230 Instrument Pack › Description: Instrument Pack
ConnectorsDescription: Instrument Pack
| Cav 1 | Col RP | Cct ALL |
| 4 | WB | ALL |
| 5 | WU | 8 |
| 7 | RW | 49 |
| 8 | UO | 30 |
| 9 | UG | 30 |
| 10 | PB | 30 |
| 11 | K | ALL |
| 12 | YB | ALL |
| 14 | UY | ALL |
| 15 | GP | ALL |
| 18 | SO | 18 |
| 20 | GO | 30 |
| 21 | GB | ALL |
| 23 | P | ALL |
| 24 | B | ALL |
| 25 | YN | ALL |

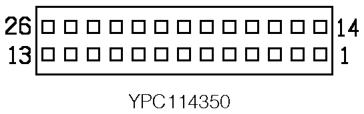

Description: Instrument Pack

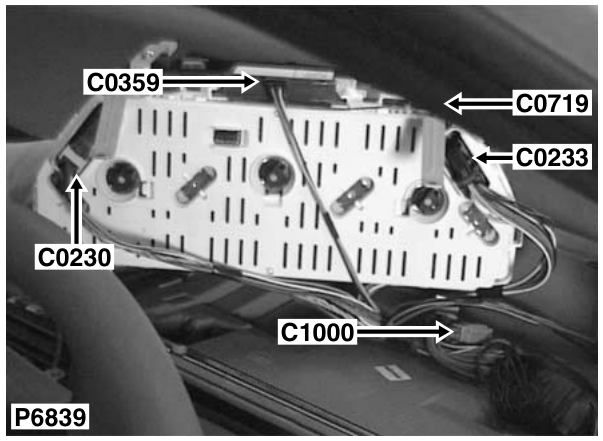

Location: Behind instrument pack
Colour: GREY Gender: Female
