Description: Instrument Pack
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 2001 on
- Section
- C0233 Instrument Pack › Description: Instrument Pack
ConnectorsDescription: Instrument Pack
| Cav 1 | Col PB | Cct ALL |
| 2 | SY | ALL |
| 4 | BW | ALL |
| 5 | B | ALL |
| 6 | RO | ALL |
| 7 | B | ALL |
| 8 | G | ALL |
| 9 | WR | ALL |
| 10 | NY | ALL |
| 11 | YR | ALL |
| 12 | WN | ALL |
| 13 | SK | ALL |
| 14 | GN | ALL |
| 15 | UK | ALL |
| 16 | GR | ALL |
| 17 | UG | ALL |
| 18 | GW | ALL |

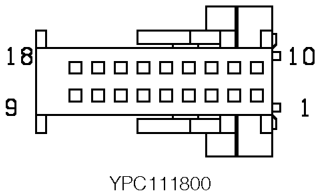

Description: Instrument Pack

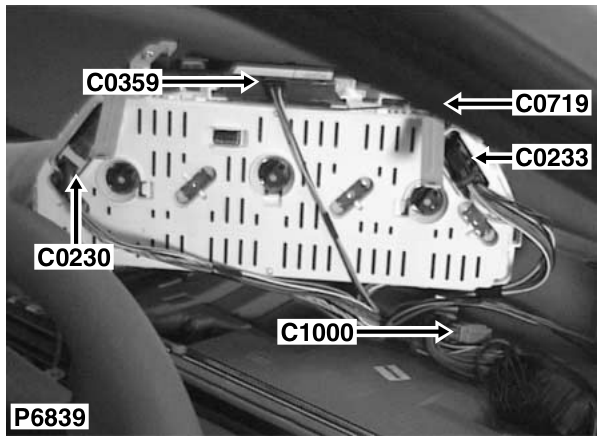

Location: Behind instrument pack
Colour: BLACK Gender: Female
