Description: Switch-Window-Front-RH
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 2001 on
- Section
- C0242 Switch-Window-Front-RH › Description: Switch-Window-Front-RH
ConnectorsDescription: Switch-Window-Front-RH
| Cav 1 | Col B | Cct ALL |
| 2 | SO | ALL |
| 3 | OU | 4 |
| 3 | OY | 5 |
| 4 | OR | 4 |
| 4 | OG | 5 |
| 6 | RO | ALL |

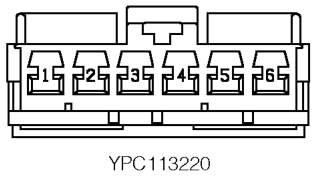

Description: Switch-Window-Front-RH

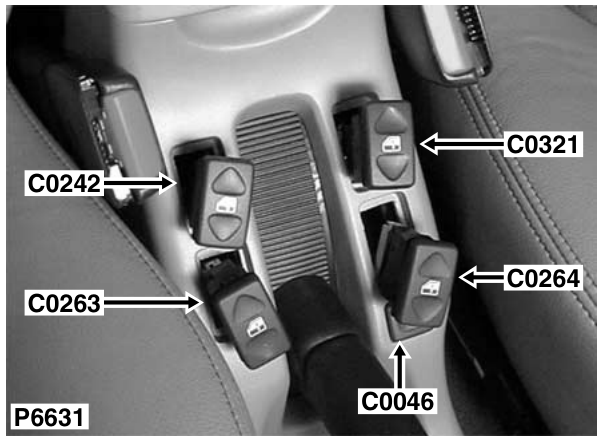

Location: In rear of centre console
Colour: WHITE Gender: Female
