Description: Solenoid-Gearbox
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 2001 on
- Section
- C0243 Solenoid-Gearbox › Description: Solenoid-Gearbox
ConnectorsDescription: Solenoid-Gearbox
| Cav 1 | Col U | Cct 16 |
| 2 | R | 16 |
| 3 | B | 16 |
| 4 | R | 16 |
| 5 | W | 16 |
| 6 | U | 16 |
| 7 | WK | 16 |
| 8 | KB | 16 |
| 9 | R | 16 |
| 10 | O | 16 |
| 11 | OU | 16 |
| 12 | K | 16 |
| 13 | GR | 16 |
| 14 | OG | 16 |
| 15 | Y | 16 |
| 16 | GP | 16 |
| 17 | U | 16 |
| 18 | SB | 16 |
Description: Solenoid-Gearbox

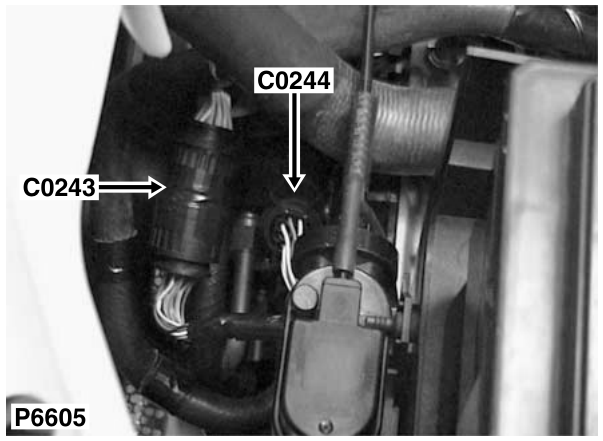

Location: Front LH side of engine compartment
Colour: BLACK Gender: Female
