Description: Switch-Heater-Seat-RH
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 2001 on
- Section
- C0249 Switch-Heater-Seat-RH › Description: Switch-Heater-Seat-RH
ConnectorsDescription: Switch-Heater-Seat-RH
| Cav 1 | Col N | Cct 41 |
| 2 | RO | 41 |
| 4 | US | 41 |
| 5 | B | 41 |
Description: Switch-Heater-Seat-RH

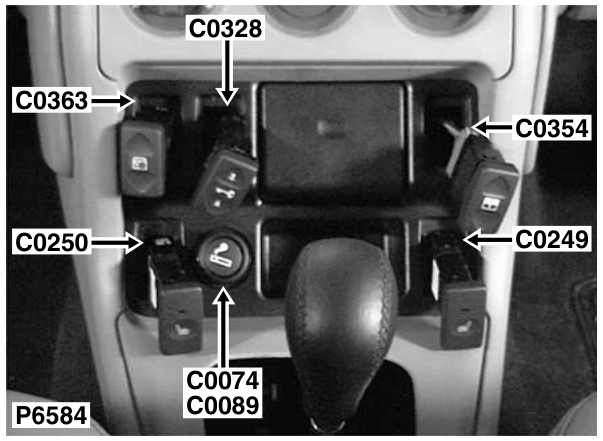

Location: Behind centre console
Colour: GREEN Gender: Female
