Description: Switch-Heater-Seat-LH
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 2001 on
- Section
- C0250 Switch-Heater-Seat-LH › Description: Switch-Heater-Seat-LH
ConnectorsDescription: Switch-Heater-Seat-LH
| Cav 1 | Col N | Cct 41 |
| 2 | RO | 41 |
| 4 | UK | 41 |
| 5 | B | 41 |
Description: Switch-Heater-Seat-LH

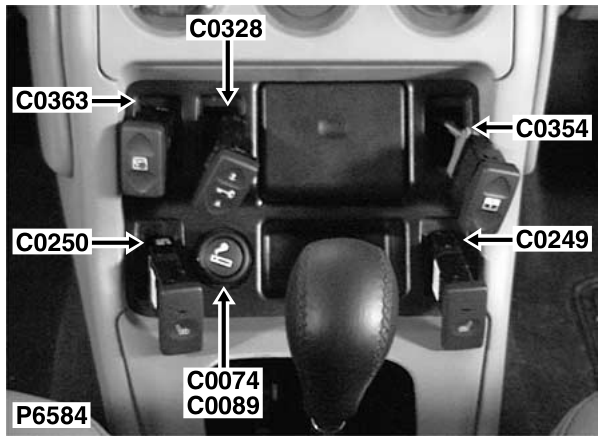

Location: Behind centre console
Colour: BLACK Gender: Female
