Description: Header

Make

Land Rover

Model

Freelander Electrical Library

Year

2001 on

Section

C0285 Header › Description: Header

ConnectorsDescription: Header

Cav 1	Col GR	Cct ALL
2	GR	ALL
3	GR	16
4	G	ALL
5	G	ALL
7	P	ALL
8	P	ALL
9	P	ALL
10	NS	ALL
11	WO	ALL
12	WO	ALL
13	WO	8
14	WO	ALL
15	B	ALL
16	B	ALL
17	B	ALL
18	B	46
19	B	5
20	B	32

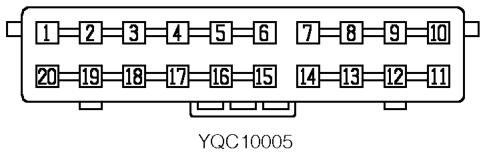

Description: Header

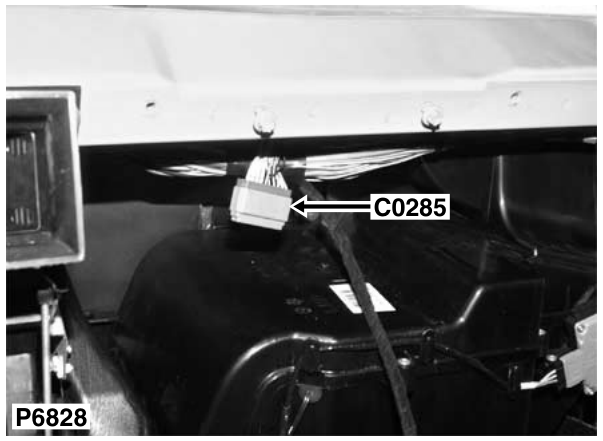

Location: Behind centre of fascia

Colour: BLUE Gender: Female

05 General
