Description: Header

Make

Land Rover

Model

Freelander Electrical Library

Year

2001 on

Section

C0286 Header › Description: Header

ConnectorsDescription: Header

Cav 1	Col RO	Cct ALL
2	RO	ALL
2	RB	5
3	RO	4
3	RB	5
4	RO	46
5	WR	ALL
6	WR	8
8	NK	16
9	NK	26
10	NK	ALL
11	GN	ALL
12	GN	ALL
13	GN	ALL
17	GP	ALL
18	GP	8
19	GP	8
20	GP	ALL

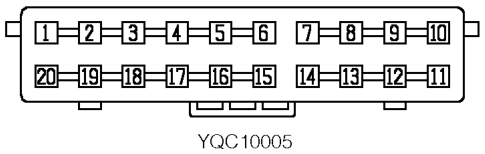

Description: Header

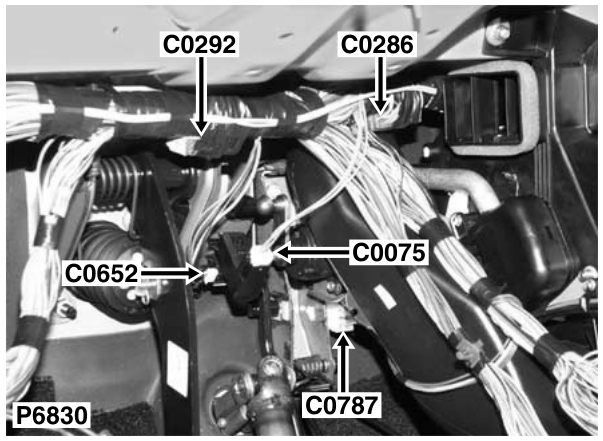

Location: Behind centre of fascia

Colour: BLUE Gender: Female

05 General
