Description: Header
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 2001 on
- Section
- C0290 Header › Description: Header
ConnectorsDescription: Header
| Cav 1 | Col RO | Cct ALL |
| 2 | RO | ALL |
| 3 | RO | ALL |
| 4 | RO | 3 |
| 5 | RO | 41 |
| 6 | RO | 41 |
| 7 | RO | 3 |
| 8 | RO | ALL |
| 9 | SG | 3 |
| 10 | SG | 3 |
| 11 | SG | 3 |
| 13 | RO | ALL |
| 14 | RO | ALL |
| 15 | RO | 47 |
| 16 | RO | ALL |
| 17 | RO | ALL |
| 18 | RO | ALL |
| 19 | RO | ALL |
| 20 | RO | ALL |

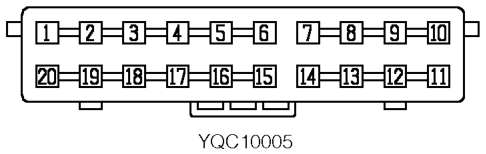

Description: Header

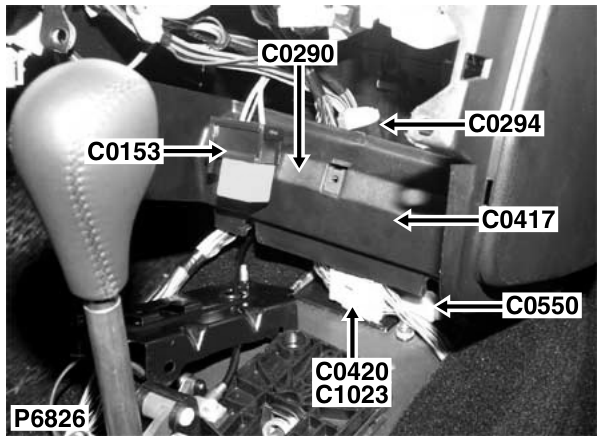

Location: Behind centre console
Colour: BLUE Gender: Female
