Description: Header

Make

Land Rover

Model

Freelander Electrical Library

Year

2001 on

Section

C0292 Header › Description: Header

ConnectorsDescription: Header

Cav 1	Col K	Cct ALL
2	K	ALL
3	K	ALL
4	K	6
5	K	ALL
6	K	ALL
7	K	ALL
8	K	16
9	NG	16
10	NG	ALL
11	NG	ALL
12	NG	16
13	W	ALL
14	W	8
15	W	ALL
16	W	16
17	W	ALL
18	W	ALL
19	W	ALL
20	W	ALL

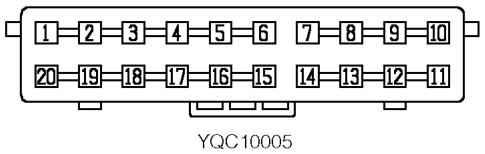

Description: Header

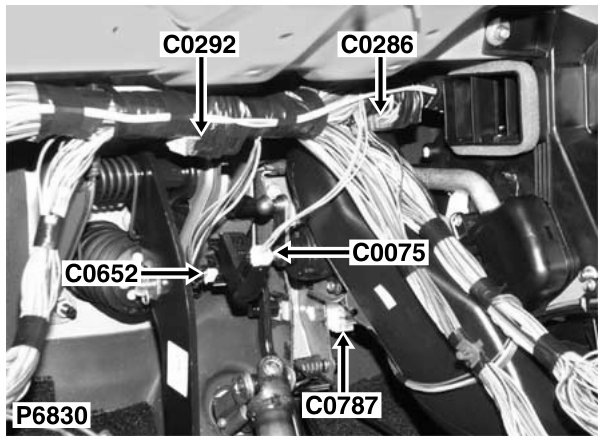

Location: Behind centre of fascia

Colour: BLUE Gender: Female

05 General
