Description: Header - NAS Location: Inside E-box

Make

Land Rover

Model

Freelander Electrical Library

Year

2001 on

Section

C0294 Header - NAS › Description: Header - NAS Location: Inside E-box

ConnectorsDescription: Header - NAS Location: Inside E-box

Cav 2	Col YG	Cct ALL
4	YG	ALL
5	YG	ALL
6	YG	ALL
7	YG	ALL
8	YG	ALL
9	YG	ALL
10	YG	ALL
11	YG	ALL
13	NK	ALL
14	NK	ALL
15	NK	ALL
16	NK	ALL
17	NK	ALL
18	NK	ALL
19	NK	ALL

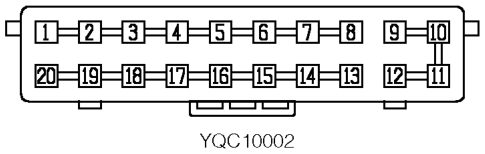

Description: Header - NAS Location: Inside E-box

Colour: GREY Gender: Female

05 General
