Description: Header
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 2001 on
- Section
- C0296 Header › Description: Header
ConnectorsDescription: Header
| Cav 5 | Col YN | Cct 26 |
| 6 | YN | ALL |
| 7 | YB | 26 |
| 12 | YN | 26 |
| 13 | YB | ALL |
| 14 | YB | 26 |

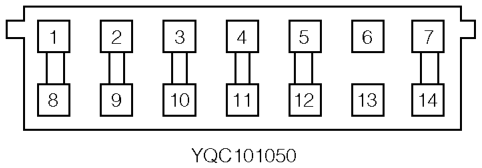

Description: Header

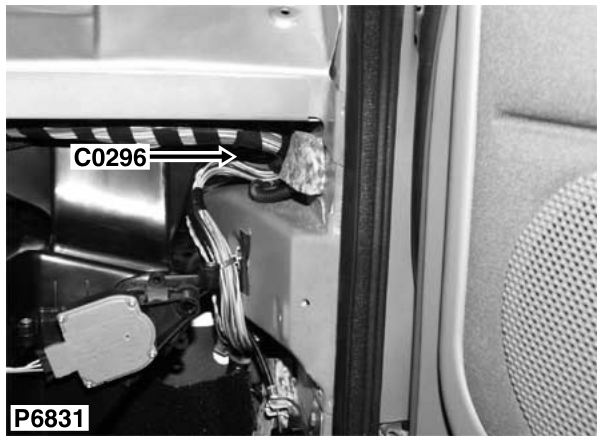

Location: Behind RH side of fascia
Colour: BLUE Gender: Female
