Colour: LIGHT GREY Gender: Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 2001 on
- Section
- C0429 Central Control Unit (CCU) › Colour: LIGHT GREY Gender: Female
ConnectorsColour: LIGHT GREY Gender: Female
| Cav 1 | Col RG | Cct ALL |
| 2 | WB | ALL |
| 3 | RU | ALL |
| 4 | YW | ALL |
| 5 | YB | ALL |
| 6 | WK | ALL |
| 7 | G | ALL |
| 8 | SW | ALL |
| 9 | Y | ALL |
| 10 | SB | 46 |
| 11 | KO | 46 |
| 12 | SP | ALL |
| 13 | SR | ALL |
| 14 | K | ALL |
| 15 | KN | ALL |
| 16 | GY | ALL |

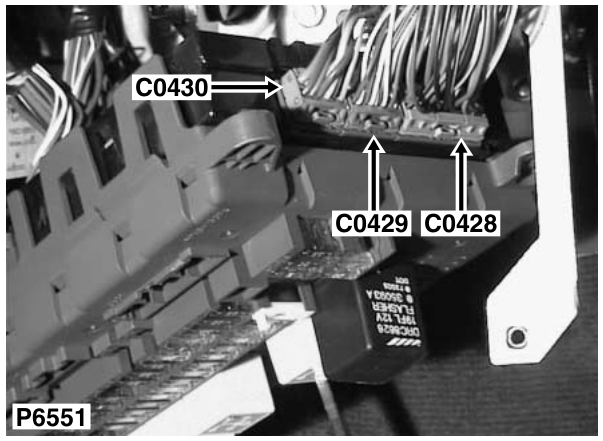

Description: Central Control Unit (CCU) Location: Behind passenger compartment fusebox
Colour: LIGHT GREY Gender: Female
