Colour: LIGHT GREY Gender: Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 2001 on
- Section
- C0430 Central Control Unit (CCU) › Colour: LIGHT GREY Gender: Female
ConnectorsColour: LIGHT GREY Gender: Female
| Cav 1 | Col NLG | Cct ALL |
| 2 | PU | ALL |
| 3 | NK | ALL |
| 4 | K | ALL |
| 5 | PY | ALL |
| 6 | LGW | ALL |
| 7 | O | ALL |
| 8 | LGK | ALL |
| 9 | K | ALL |
| 10 | KB | ALL |

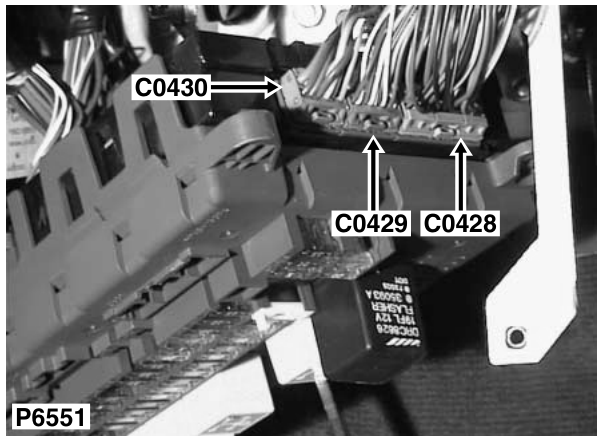

Description: Central Control Unit (CCU) Location: Behind passenger compartment fusebox
Colour: LIGHT GREY Gender: Female
