Colour: NATURAL Gender: Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 2001 on
- Section

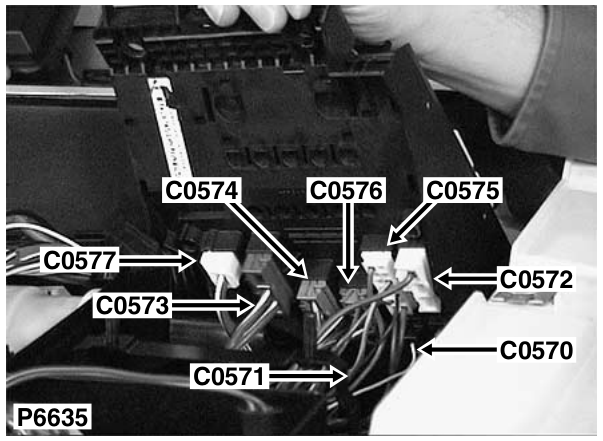

- C0575 Fuse box-Engine compartment › Colour: NATURAL Gender: Female
ConnectorsColour: NATURAL Gender: Female
| Cav 1 | Col G | Cct ALL |
| 2 | GU | 21 |
| 3 | W | ALL |
| 4 | NK | ALL |
| 5 | R | 46 |
| 6 | NY | ALL |
| 7 | WN | ALL |
| 8 | NK | 16 |
| 9 | BP | ALL |
| 10 | BR | ALL |
| 12 | RN | ALL |

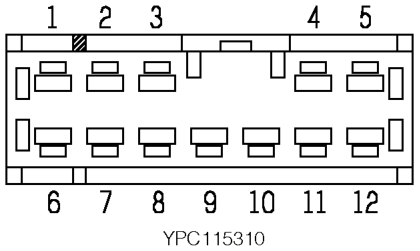

Description: Fuse box-Engine compartment Location: Beneath engine compartment fusebox
Colour: NATURAL Gender: Female
