Colour: BLUE Gender: Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 2001 on
- Section

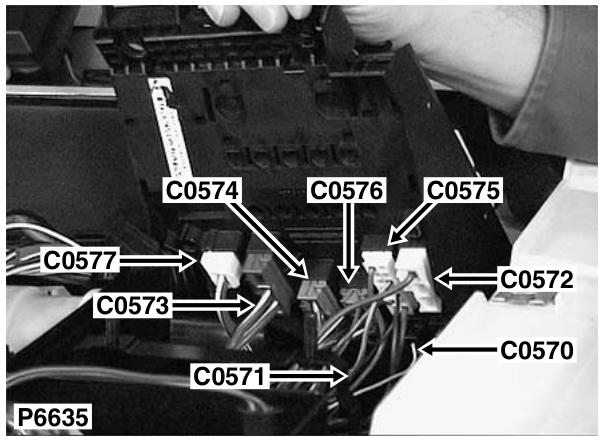

- C0576 Fuse box-Engine compartment › Colour: BLUE Gender: Female
ConnectorsColour: BLUE Gender: Female
| Cav 1 | Col RW | Cct ALL |
| 2 | UG | ALL |
| 3 | GN | ALL |
| 4 | PY | ALL |
| 5 | B | 18 |
| 6 | PN | 6 |
| 6 | NG | ALL |
| 7 | B | ALL |
| 8 | PB | ALL |
| 9 | WK | ALL |
| 10 | RW | 6 |
| 10 | NK | ALL |
| 11 | UB | ALL |
| 12 | NO | ALL |

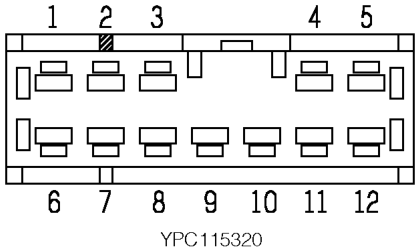

Description: Fuse box-Engine compartment Location: Beneath engine compartment fusebox
Colour: BLUE Gender: Female
