Colour: BLACK Gender: Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 2001 on
- Section
- C0578 Fuse box-Engine compartment › Colour: BLACK Gender: Female

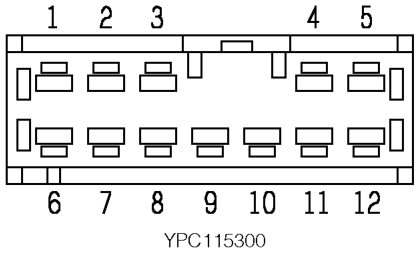

ConnectorsColour: BLACK Gender: Female
| Cav 1 | Col NK | Cct ALL |
| 2 | NK | ALL |
| 3 | NP | ALL |
| 5 | NU | ALL |
| 6 | R | ALL |
| 7 | WN | ALL |
| 8 | NY | ALL |
| 9 | WK | ALL |
| 10 | W | ALL |
| 11 | NU | ALL |
| 12 | BR | ALL |

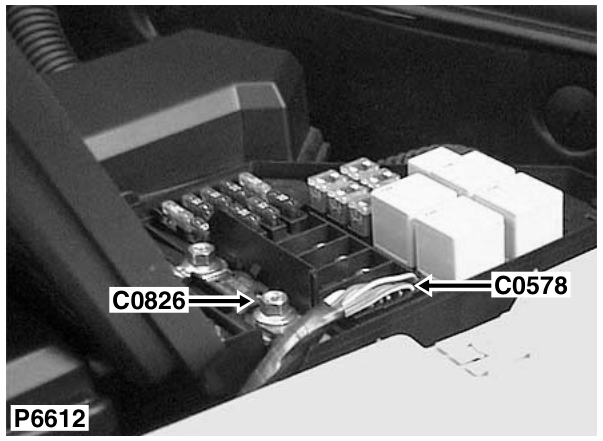

Description: Fuse box-Engine compartment Location: Rear LH side of engine compartment
Colour: BLACK Gender: Female
