Colour: LIGHT GREY Gender: Female

Make

Land Rover

Model

Freelander Electrical Library

Year

2001 on

Section

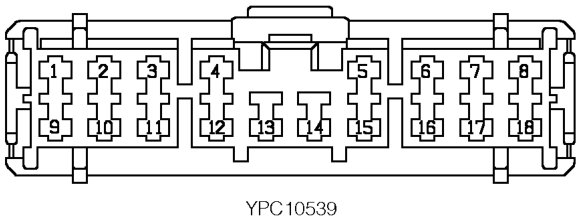

C0580 Fuse box-Passenger compartment › Colour: LIGHT GREY Gender: Female

ConnectorsColour: LIGHT GREY Gender: Female

Cav 1	Col LGW	Cct ALL
2	LGK	ALL
3	W	ALL
4	G	ALL
5	G	ALL
6	KO	19
7	P	ALL
8	NG	ALL
10	LGN	ALL
11	LGN	ALL
12	G	ALL
13	BW	ALL
14	PW	ALL
15	GW	ALL
16	LG	ALL
17	G	ALL
18	GR	ALL

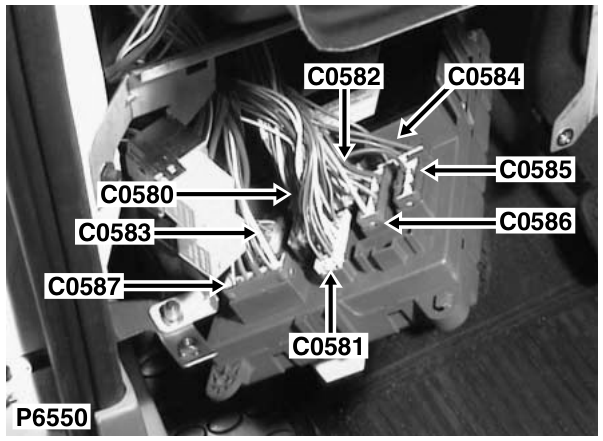

Description: Fuse box-Passenger compartment Location: Behind passenger compartment fusebox

Colour: LIGHT GREY Gender: Female

05 General
