Colour: LIGHT GREY Gender: Female

Make

Land Rover

Model

Freelander Electrical Library

Year

2001 on

Section

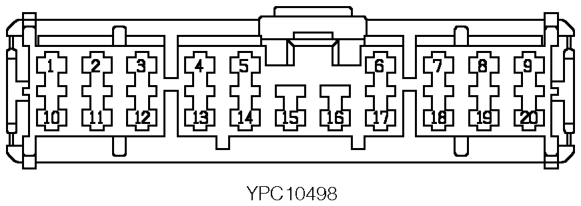

C0589 Fuse box-Passenger compartment › Colour: LIGHT GREY Gender: Female

ConnectorsColour: LIGHT GREY Gender: Female

Cav 1	Col UK	Cct ALL
2	RG	ALL
3	RY	ALL
5	WN	ALL
6	PB	ALL
7	GY	ALL
8	RP	ALL
9	G	ALL
10	BW	ALL
11	GW	ALL
12	UY	ALL
13	GR	ALL
14	UG	ALL
15	B	ALL
16	GP	ALL
17	G	ALL
18	RB	48
19	RB	20
19	RO	44
20	P	ALL

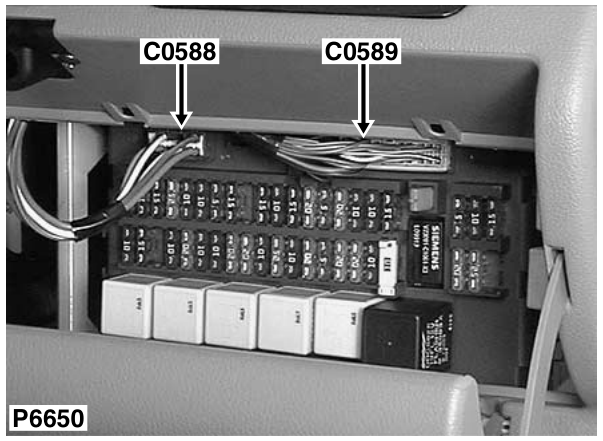

Description: Fuse box-Passenger compartment Location: Behind passenger compartment fusebox cover

Colour: LIGHT GREY Gender: Female
