Colour: BLACK Gender: Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 2001 on
- Section
- C0603 Engine control module (ECM) › Colour: BLACK Gender: Female
ConnectorsColour: BLACK Gender: Female
| Cav 1 | Col NK | Cct 6 |
| 1 | W | 18 |
| 3 | K | 6 |
| 4 | B | 30 |
| 5 | B | 30 |
| 6 | B | 30 |
| 7 | NG | 18 |
| 7 | W | ALL |
| 8 | NK | ALL |
| 9 | WK | 6 |
| 9 | NK | 18 |

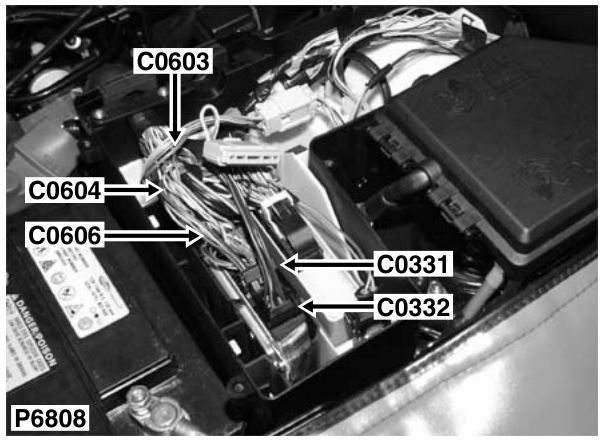

Description: Engine control module (ECM) Location: Inside E-box
Colour: BLACK Gender: Female
