Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C006 › Female

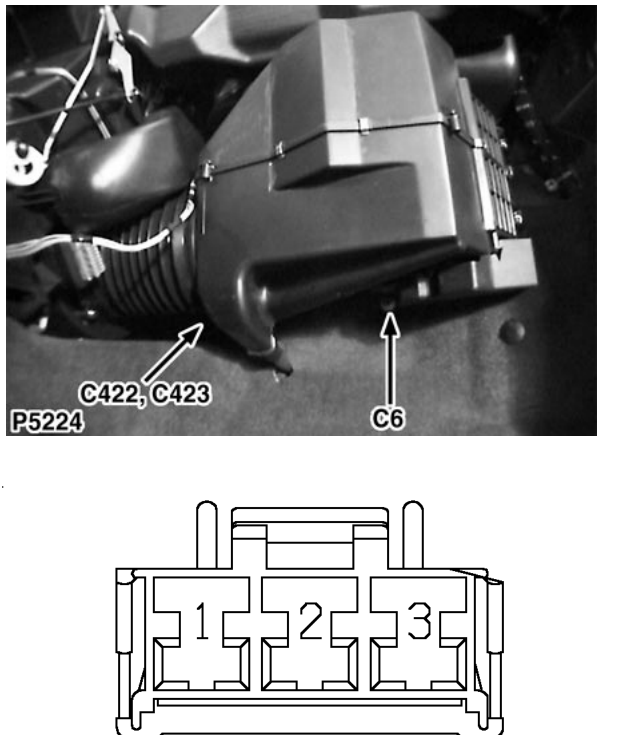

ConnectorsFemale
Motor - Recirculated air
Female
LIGHT GREY
Under RH side of fascia
| Cav | Col | CCT |
|---|---|---|
| 1 | LGS | 10 |
| 1 | Y | 11 |
| 2 | K | ALL |
| 3 | Y | 10 |
| 3 | LGS | 11 |
