Switch - Bonnet
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C007 › Switch - Bonnet
ConnectorsSwitch - Bonnet
Switch - Bonnet
Female
BLACK

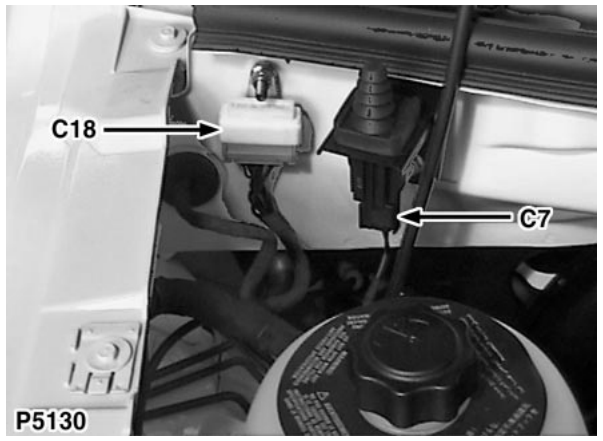

Rear RH side of engine compartment
| Cav | Col | CCT |
|---|---|---|
| 1 | RP | ALL |
| 2 | B | ALL |
