Land Rover Freelander Electrical Library (1998-2000)05 · Connectors
05 · General

Pump - Washer - Windscreen

Make
Land Rover
Model
Freelander Electrical Library
Year
1998–2000
Section
C008 › Pump - Washer - Windscreen
ConnectorsPump - Washer - Windscreen

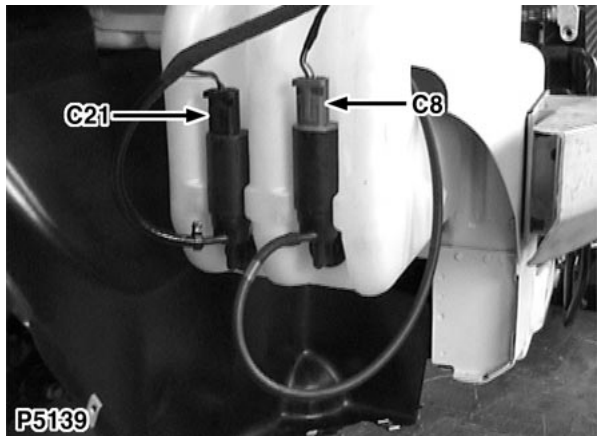

Diagram

Pump - Washer - Windscreen

Female

RED

Behind RH side of front bumper

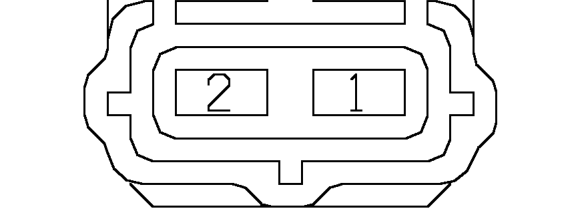

Female – Behind RH side of front bumper
CavColCCT
1LGBALL
2BALL
