Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C040 › Female
ConnectorsFemale

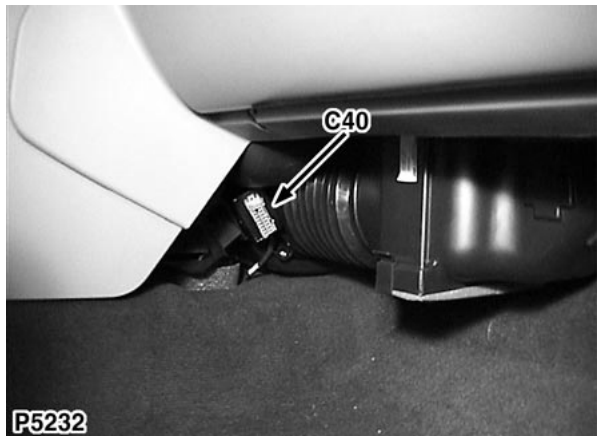

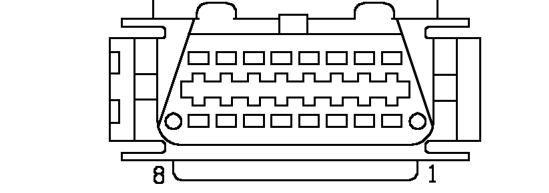

Diagnostic socket - Left Hand Drive
Female
GREY
Beneath centre console RH side
| Cav | Col | CCT |
|---|---|---|
| 4 | B | ALL |
| 7 | YK | ALL |
| 16 | P | ALL |
