Switch - Lighting
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C041 › Switch - Lighting

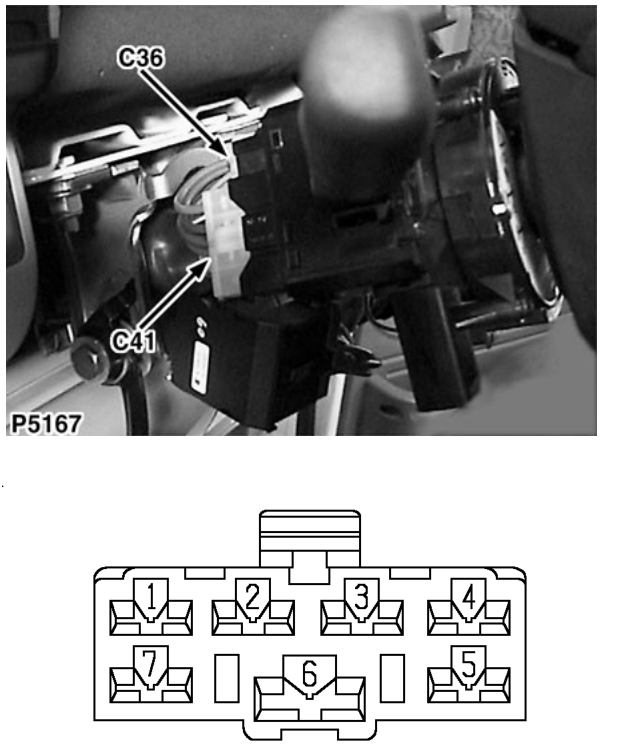

ConnectorsSwitch - Lighting
Switch - Lighting
Female
NATURAL
LH side of steering column
| Cav | Col | CCT |
|---|---|---|
| 1 | U | ALL |
| 2 | UO | ALL |
| 3 | N | ALL |
| 4 | R | ALL |
| 5 | UW | ALL |
| 6 | N | ALL |
