Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C172 › Female
ConnectorsFemale
Relay module

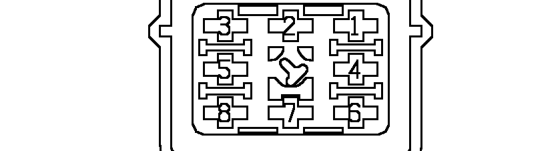

Female
BLUE

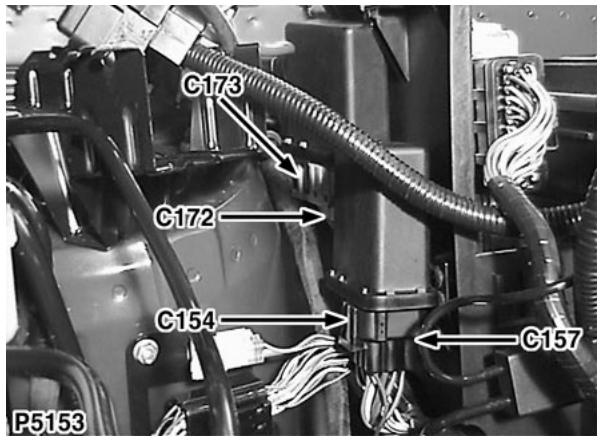

Beneath engine compartment fusebox
| Cav | Col | CCT |
|---|---|---|
| 2 | R | 2 |
| 3 | SU | ALL |
| 4 | B | ALL |
| 5 | NR | ALL |
| 6 | PS | ALL |
| 7 | N | ALL |
| 8 | NW | ALL |
