Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C173 › Female
ConnectorsFemale
Relay module

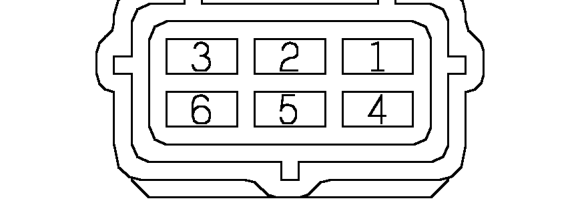

Female
BLUE

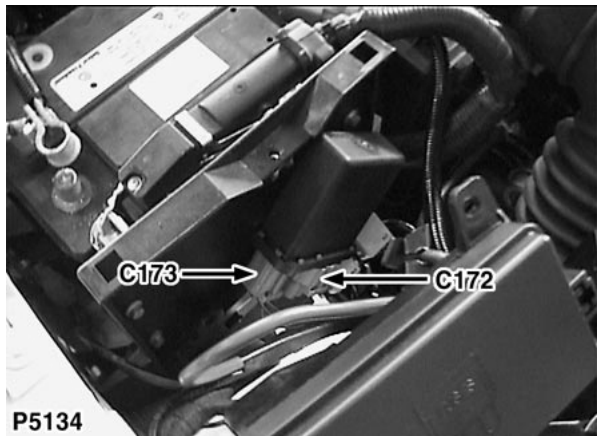

Beneath engine compartment fusebox
| Cav | Col | CCT |
|---|---|---|
| 1 | NK | ALL |
| 2 | US | ALL |
| 3 | UY | ALL |
| 4 | NK | ALL |
| 5 | UB | 2 |
