Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C200 › Female
ConnectorsFemale
Engine harness to main harness

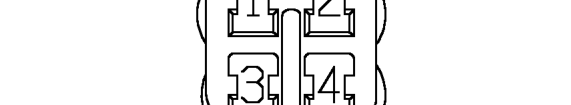

Female
NATURAL

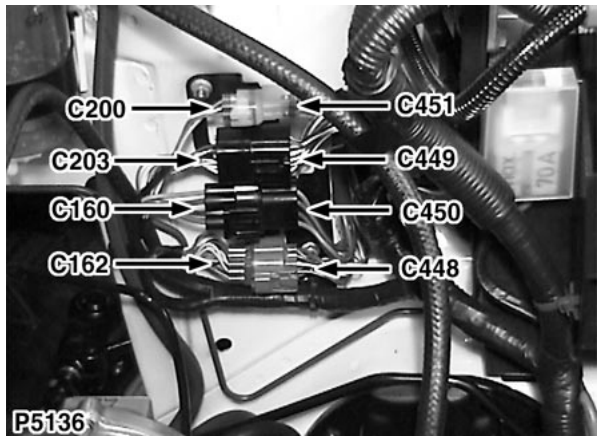

Lower LH rear of engine compartment
| Cav | Col | CCT |
|---|---|---|
| 1 | LGR | ALL |
| 3 | YG | ALL |
| 4 | PO | ALL |
