Male
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C203 › Male
ConnectorsMale

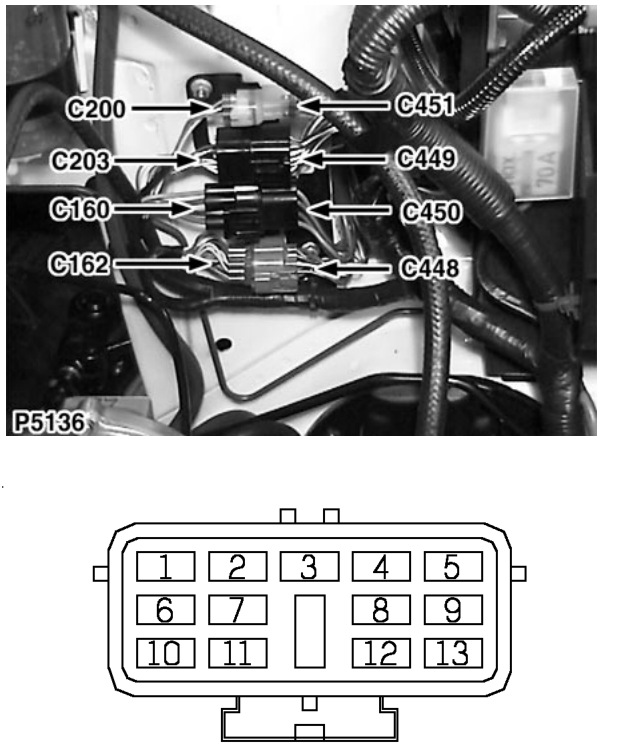

Engine harness to main harness
Male
BLACK
Lower LH rear of engine compartment
| Cav | Col | CCT |
|---|---|---|
| 1 | W | ALL |
| 2 | WB | ALL |
| 3 | WR | ALL |
| 4 | WP | ALL |
| 5 | G | ALL |
| 6 | GN | ALL |
| 7 | NY | ALL |
| 8 | WN | ALL |
| 9 | GU | ALL |
| 10 | KB | ALL |
| 11 | BW | ALL |
| 12 | BY | ALL |
| 13 | NK | ALL |
