Pump - Fuel
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section

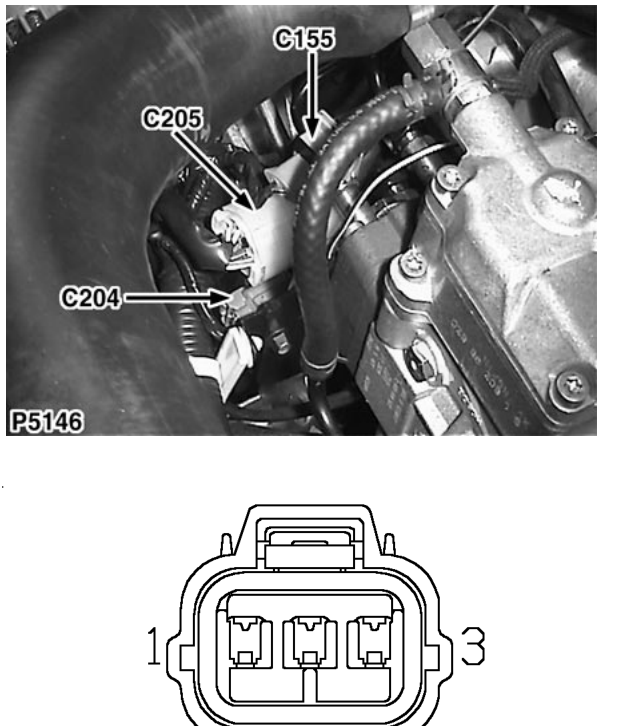

- C204 › Pump - Fuel
ConnectorsPump - Fuel
Pump - Fuel
Female
LIGHT GREY
Front of engine - centre
| Cav | Col | CCT |
|---|---|---|
| 1 | NG | ALL |
| 2 | NK | ALL |
| 3 | W | ALL |
